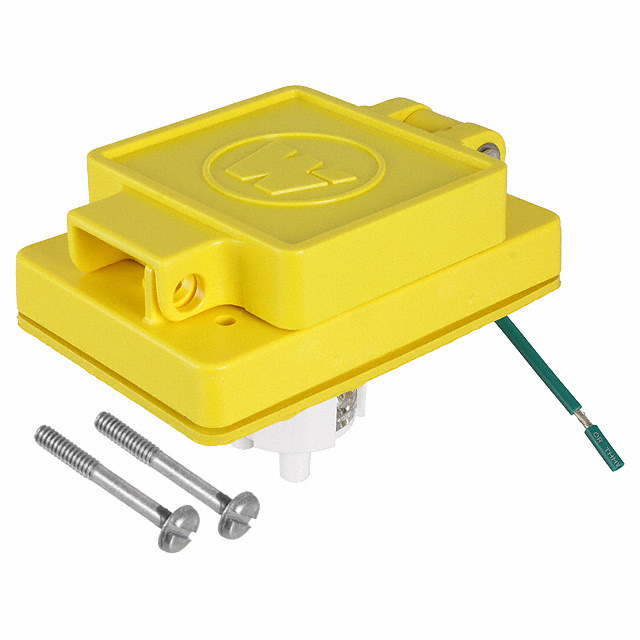

Specification	1301460116

Approval Agency	UL, CSA
Connector Style	NEMA 5-15P
Connector Type	Male Blades, Receptacle
Current Rating	15 A
Features	Flip Lid
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Wall Mount
Number of Positions	3
Termination	Screw
Voltage Rating	125 V

130146 Series

Watertite Extreme Connector, 2 Pole/3 Wire, NEMA 5-20, 125V, Cord Grip Body Size F2, Silicone Husk

...

Part	Features	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Approval Agency	Current Rating	Mounting Type	Termination	Voltage Rating	Connector Style	Number of Positions	Current Rating (Minimum)	Current Rating (Maximum)	Voltage Rating (Option 1)	Voltage Rating (Option 2)	Ingress Protection
Molex 1301460054	Cord Grip Ground Indicator Lighted Strain Relief	Dust Tight Waterproof	IP67	Female Sockets Receptacle	CSA UL	20 A	Free Hanging (In-Line)	Screw	125 V	NEMA 5-20R	3
Molex 1301460110	Cord Grip Cover Locking Blade Strain Relief	Dust Tight Waterproof	IP67	Female Sockets Receptacle	CSA UL	20 A	Free Hanging (In-Line)	Screw	250 V	NEMA L2-20R	2
Molex 1301460108	Cord Grip Locking Blade Strain Relief	Dust Tight Waterproof	IP67	Male Blades Plug	CSA UL	20 A	Free Hanging (In-Line)	Screw	250 V	NEMA L2-20P	2
Molex 1301460145	Flip Lid Locking Blade	Dust Tight Waterproof	IP67	Female Sockets Receptacle			Wall Mount	Screw		NON-NEMA (3P3W)	3	10 A	15 A	125 VAC	250 VAC
Molex 1301460137	Flip Lid	Dust Tight Waterproof	IP67	Female Sockets Receptacle	CSA UL	15 A	Wall Mount	Screw	250 V	NEMA 6-15R	3
Molex 1301460155	Flip Lid Locking Blade	Dust Tight Waterproof	IP67	Male Blades Receptacle	CSA UL	20 A	Wall Mount	Screw	250 V	NEMA L2-20P	2
Molex 1301460180	Cord Grip Grommets Strain Relief	Dust Tight Water Resistant Waterproof	IP69K	Male Blades Plug	CSA		Free Hanging (In-Line)	Screw		NON-NEMA (3P3W)	3	10 A	15 A	125 VAC	250 VAC
Molex 1301460201	Cord Grip Cover			Female Sockets Receptacle	CSA UL	20 A	Free Hanging (In-Line)	Screw	250 V	NEMA 6-20R	3					IP69K
Molex 1301460221	Cord Grip Cord-Clamp Strain Relief Locking Blade			Female Sockets Plug	CSA	15 A	Free Hanging (In-Line)	Screw	125 V	NEMA L5-15P	3					IP69K
Molex 1301460196	Cord Grip Cord-Clamp Strain Relief Cover			Female Socket Recepture	CSA UL	15 A	Free Hanging (In-Line)	Screw	277 VAC	NEMA 7-15R	3					IP69K
