WK202070A4702J2200
ActiveVishay Dale

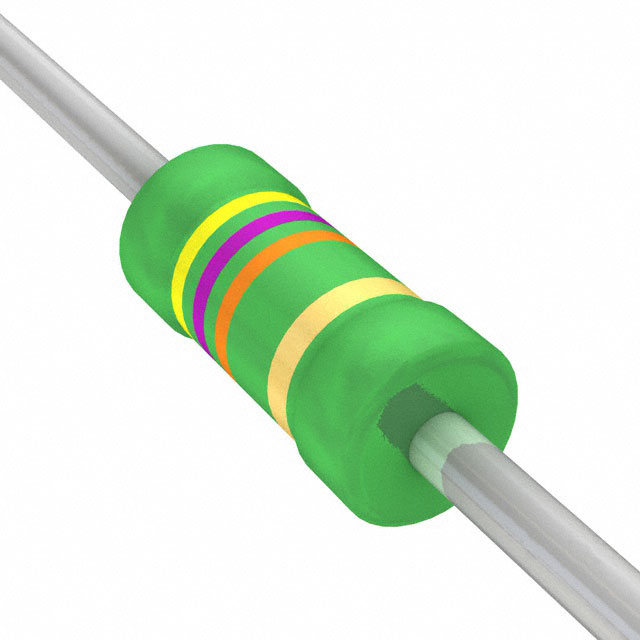

RES 47K OHM 5% 1W AXIAL
WK202070A4702J2200
ActiveVishay Dale
RES 47K OHM 5% 1W AXIAL
Description
General part information
WK202070A4702J2200
47 kOhms ±5% 1W Through Hole Resistor Axial Automotive AEC-Q200, Pulse Withstanding Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | WK202070A4702J2200 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Pulse Withstanding, Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 47 kOhm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
