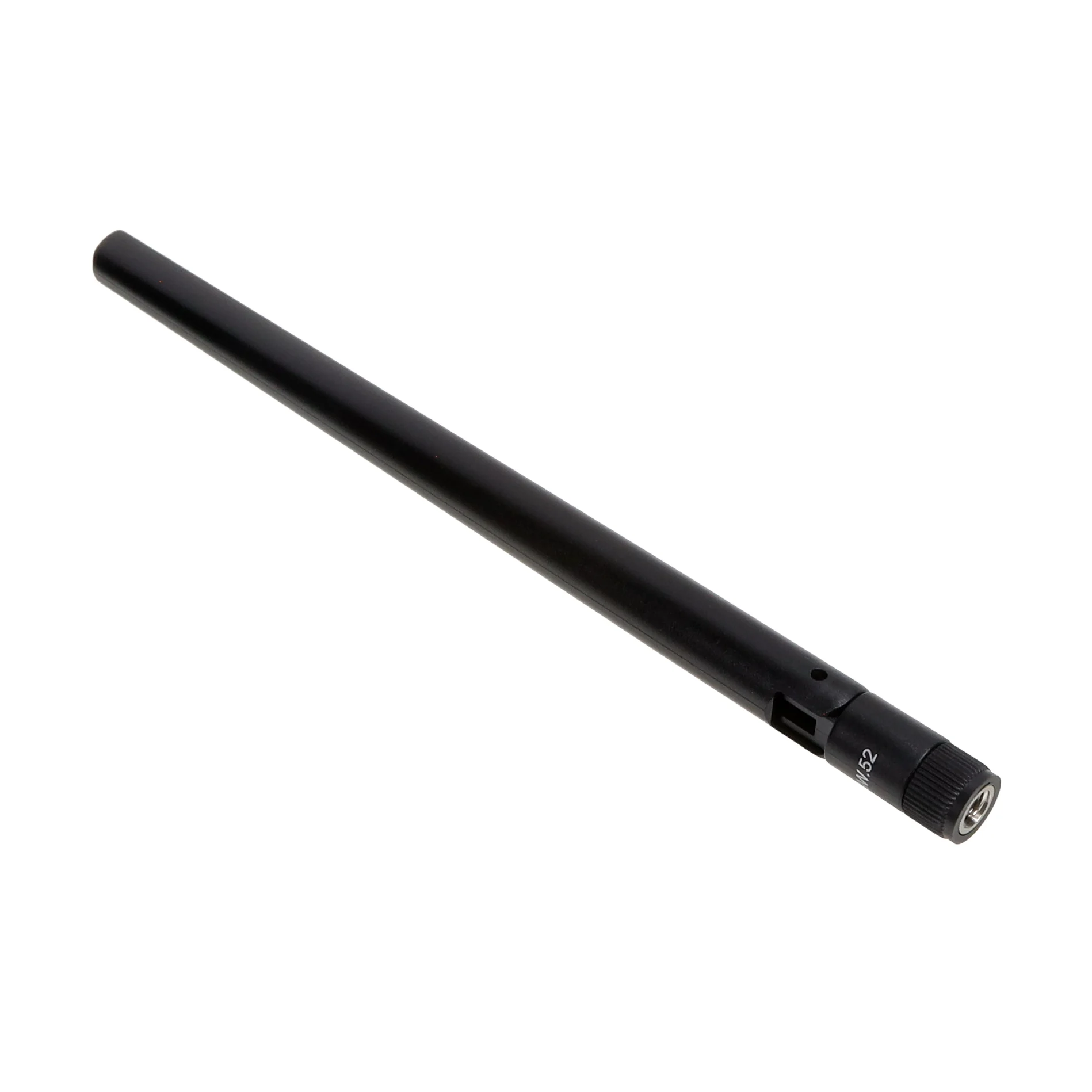

GW.52.A153
ActiveTaoglas Limited
RF ANTENNA, 5.925 TO 7.125GHZ, BLUETOOTH/BLE/WIFI 6/WIFI 7/WLAN/ZIGBEE, 5.53DBI, 50 OHM, LINEAR
GW.52.A153
ActiveTaoglas Limited
RF ANTENNA, 5.925 TO 7.125GHZ, BLUETOOTH/BLE/WIFI 6/WIFI 7/WLAN/ZIGBEE, 5.53DBI, 50 OHM, LINEAR
Description
General part information
GW.52.A153
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Whip, Straight RP-SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GW.52.A153 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | Wi-Fi, Zigbee™, WLAN, Bluetooth |
| Frequency (Center/Band) | 6.525GHz, 2.45GHz, 5.375GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 4.9 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 4.53 dBi, 2.93 dBi, 5.53 dBi |
| Height (Max) | 7.992 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | RP-SMA Male |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
