Specification	B65501D0000Y048

Core Factor (ΣI/A) mm⁻¹	1.68 mm⁻¹

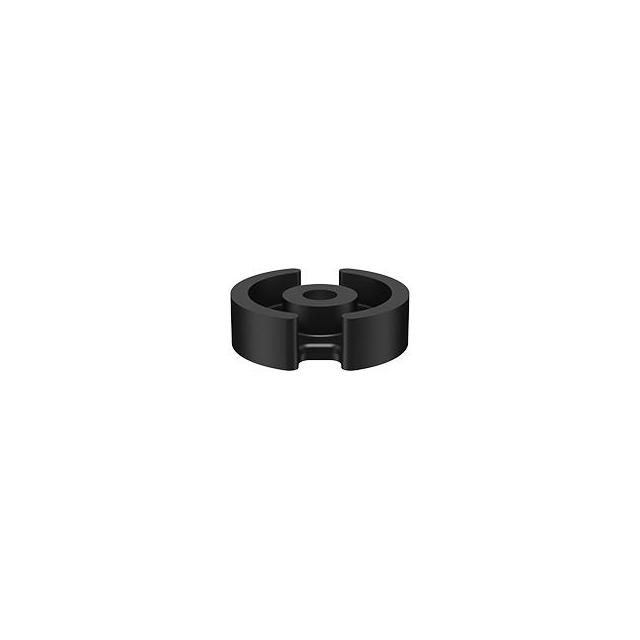

Core Type	P (Pot Core)
Diameter	0.228 in
Effective Area (Ae)	4.7 mm²
Effective Length (le)	7.9 mm
Effective Magnetic Volume (Ve)	37 mm³
Effective Permeability (µe)	1070
Finish	Uncoated
Gap	Ungapped
Height	0.067 in
Inductance Factor (Al)	800 nH
Material	N48
Package Length	5.8 mm
Package Name	P
Package Width	3.3 mm
Tolerance (Negative)	30 %
Tolerance (Positive)	40 %
