1083
ActiveKeystone Electronics

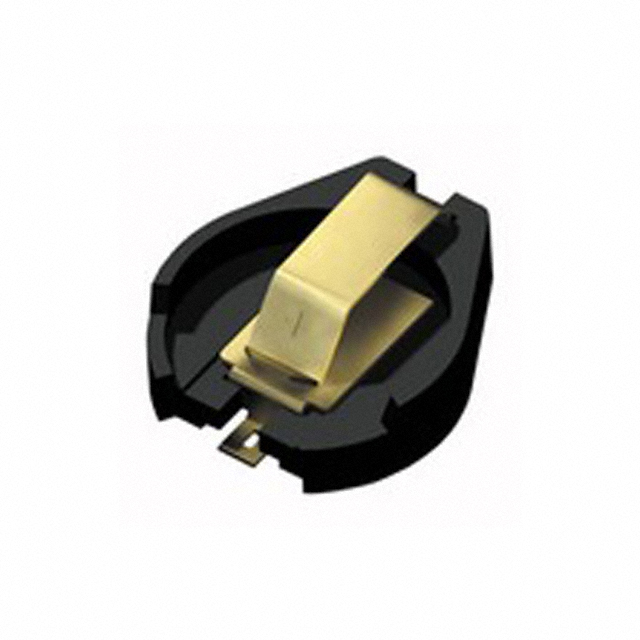

BATTERY HOLDER COIN 23MM SMD
1083
ActiveKeystone Electronics
BATTERY HOLDER COIN 23MM SMD
Description
General part information
1083
Battery Holder (Open) Coin, 23.0mm 1 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | 1083 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 23 mm |
| Battery Series | 2325, 2330, 2335, 2320 |
| Battery Type | Coin Cell |
| Function | Holder |
| Height Above Board | 0.29 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
