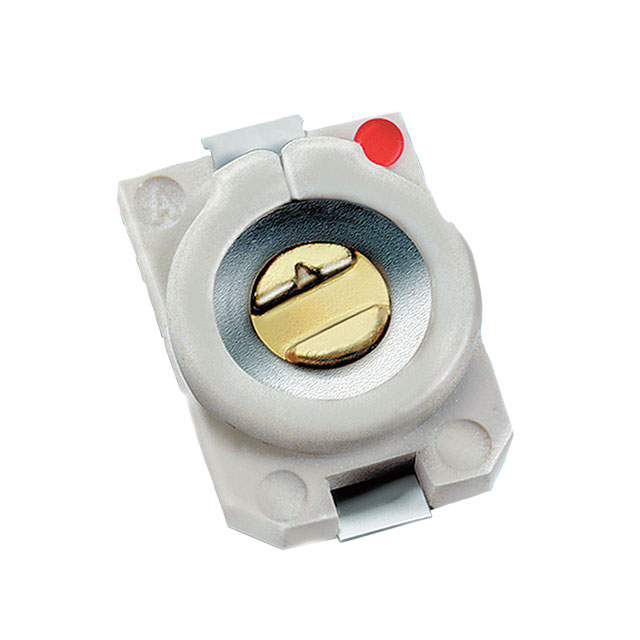

JZ030HV
ActiveKnowles Syfer
CAP TRIMMER 1.5-3PF 350V SMD
JZ030HV
ActiveKnowles Syfer
CAP TRIMMER 1.5-3PF 350V SMD
Description
General part information
JZ030HV
1.5 ~ 3pF Trimmer Capacitor 350 V Top Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JZ030HV |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 3 pF |
| Capacitance Range (Min) | 1.5 pF |
| Dielectric Material | Ceramic |
| Features | General Purpose |
| Height - Seated (Max) | 0.057 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Q | 500 |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Voltage - Rated | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
