9007CR61E
ActiveSCHNEIDER ELECTRIC

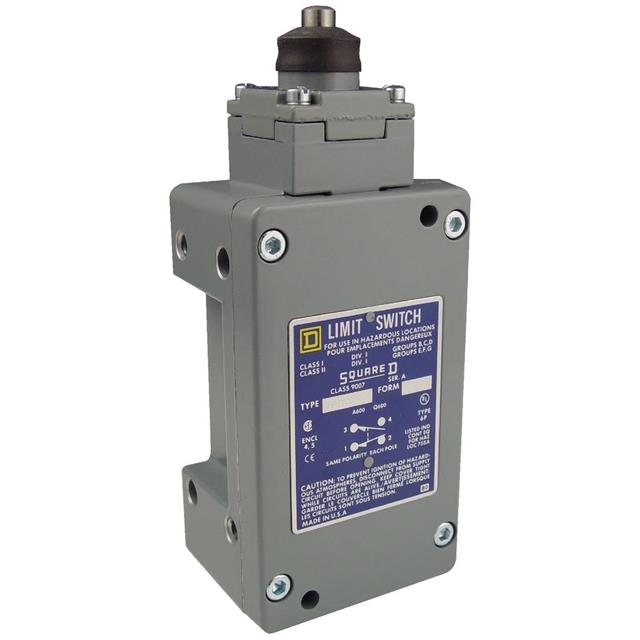

LIMIT SWITCH, IP67, PIN PLUNGER, DPDT-DB, 6 A, 120 V, 3 LBF, 9007 SERIES
9007CR61E
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, IP67, PIN PLUNGER, DPDT-DB, 6 A, 120 V, 3 LBF, 9007 SERIES
Description
General part information
9007CR61E
Switch 4PST-2NO/2NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007CR61E |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | 4PST-2NO/2NC |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -29 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
