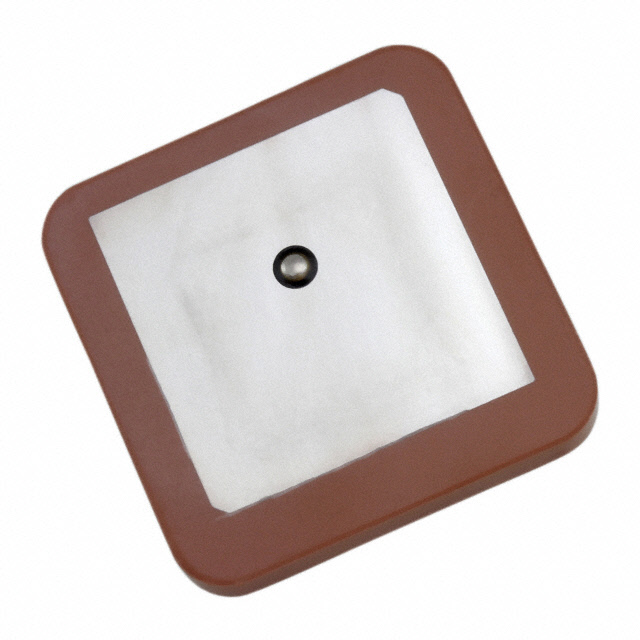

APAES923R4560C16-T
ActiveAbracon LLC
RF ANT 923MHZ CER PATCH PIN ADH
APAES923R4560C16-T
ActiveAbracon LLC
RF ANT 923MHZ CER PATCH PIN ADH
Description
General part information
APAES923R4560C16-T
RF ANTENNA Ceramic Patch Pin Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | APAES923R4560C16-T |
|---|---|
| Antenna Type | Ceramic Patch |
| Frequency (Center/Band) | 923 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 930 MHz |
| Frequency Range (Min) | 915 MHz |
| Gain | 2.5 dBic |
| Height (Max) | 0.256 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| Termination | Pin |
| VSWR | 1.5 |
