Description
General part information

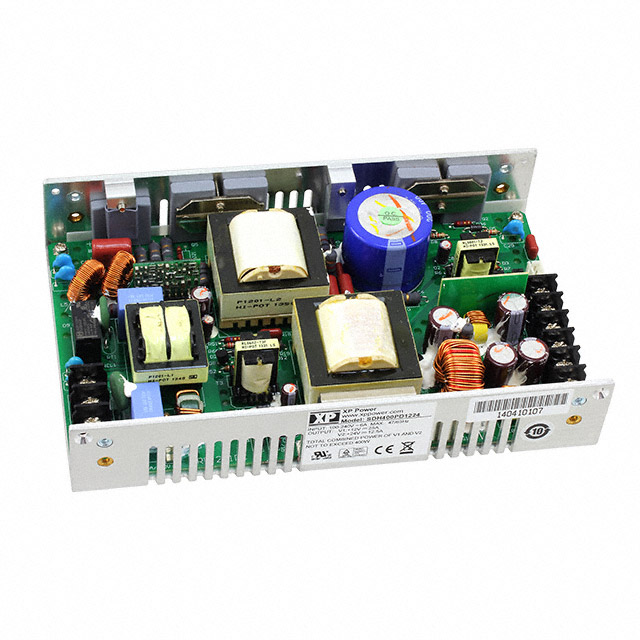

SDH400PD1224
Open Frame AC DC Converters 2 Output 12V 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SDH400PD1224 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, TUV, UL |
| Current - Output 1 | 25 A |
| Current - Output 2 | 12.5 A |
| Efficiency | 88 % |
| Features | Adjustable Output, Remote On/Off, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 400 W |
| Size / Dimension Height | 1.25 in |
| Size / Dimension Length | 7 in |
| Size / Dimension Width | 5 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 24 V |
