3210897
ActivePhoenix Contact

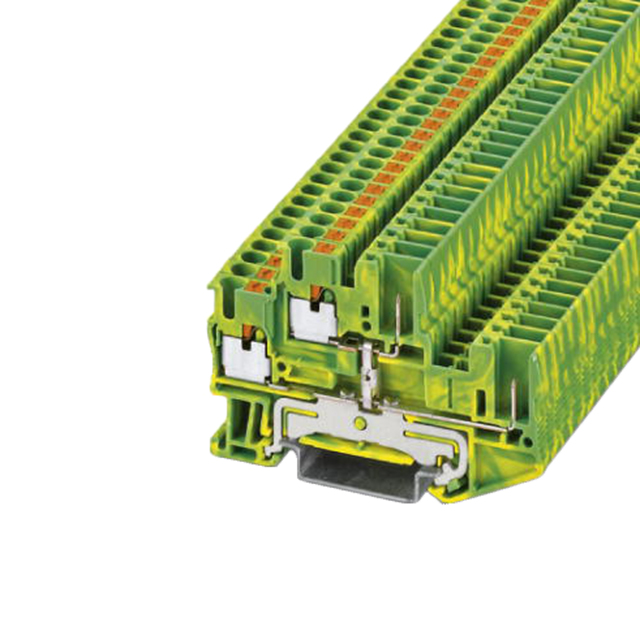

CONN DOUBLE-LEVEL TERMINAL BLOCK F 4 POS T DIN RAIL
3210897
ActivePhoenix Contact
CONN DOUBLE-LEVEL TERMINAL BLOCK F 4 POS T DIN RAIL
Description
General part information
3210897
4 Position Terminal Block Green, Yellow Plug Connection 5.2mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 3210897 |
|---|---|
| Height (Max) | 2.165 in |
| Housing Color | Green, Yellow |
| Length | 2.815 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Plug Receptacles, Spring |
| Type | Plug Connection |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
