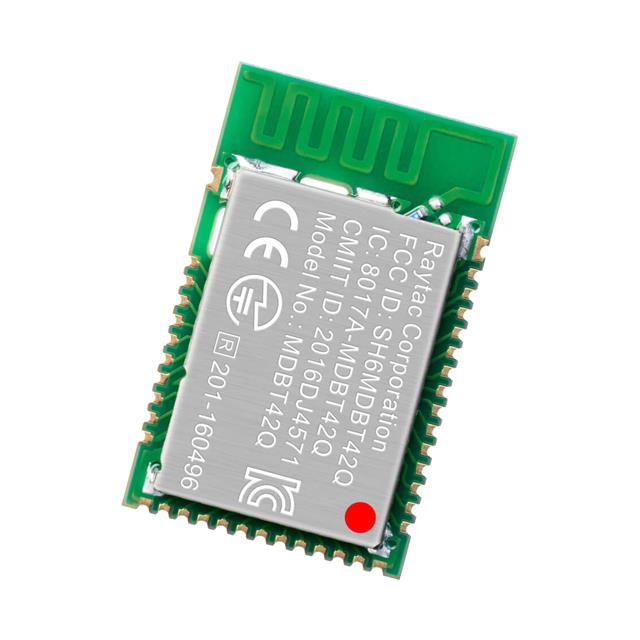

MDBT42Q-PAT2
Bluetooth Bluetooth v5.4 Transceiver Module 2.36GHz ~ 2.5GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT42Q-PAT2 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving (Max) | 11.2 mA |
| Current - Receiving (Min) | 3.5 mA |
| Current - Transmitting (Max) | 15.4 mA |
| Current - Transmitting (Min) | 2.1 mA |
| Data Rate | 2 Mbps |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 2.36 GHz |
| Memory Size | 24 kB |
| Memory Size (Flash) | 192 kB |
| Memory Type | Flash, RAM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v5.4 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -96 dBm |
| Serial Interfaces | UART, GPIO |
| Utilized IC / Part | nRF52810 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
