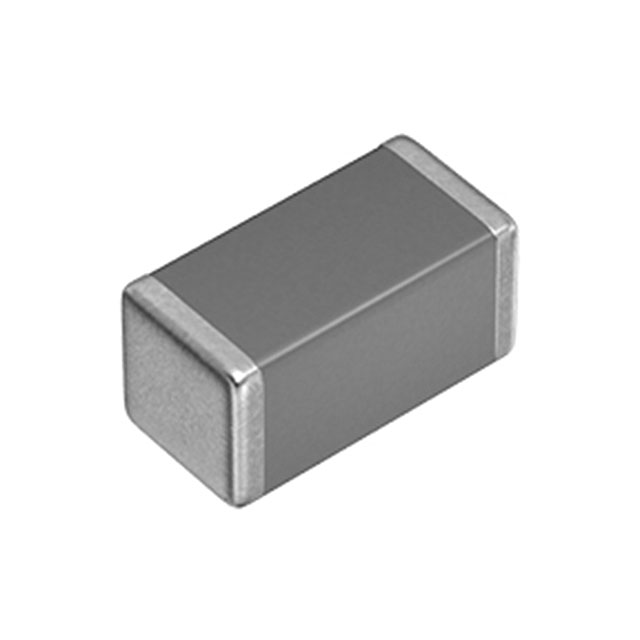

C1005C0G2A101J050BE
ActiveTDK Corporation
CAP CERAMIC 100PF 100V C0G 5% PAD SMD 0402 SOFT TERMINATION 125°C T/R
C1005C0G2A101J050BE
ActiveTDK Corporation
CAP CERAMIC 100PF 100V C0G 5% PAD SMD 0402 SOFT TERMINATION 125°C T/R
Description
General part information
C1005C0G2A101J050BE
100 pF ±5% 100V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C1005C0G2A101J050BE |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 100 pF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.024 in |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
