3PS-250-2-WT-3

Active

BRADY

SLEEVE, 0.25 IN DIA X 0.67 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.25 IN DIA X 0.67 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2903.54

General part information

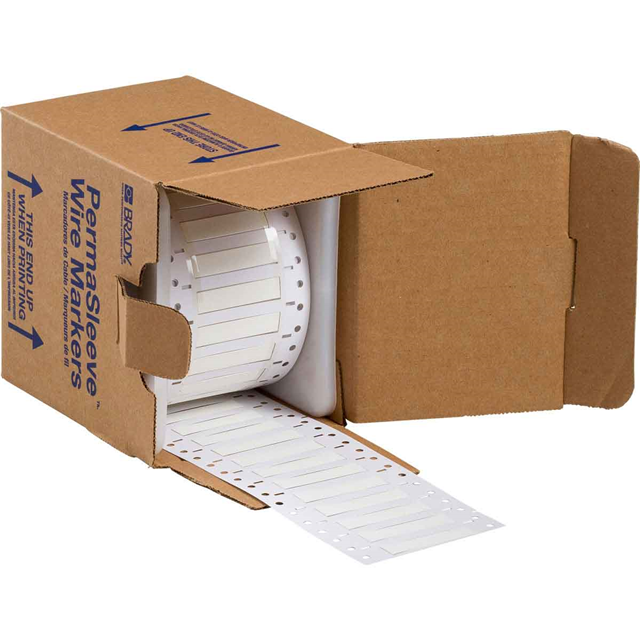

White Heat Shrinkable Label 0.67" W x 0.25" Dia (17.0mm x 6.4mm); Cable O.D. 0.09" ~ 0.22" (2.4mm ~ 5.5mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3PS-250-2-WT-3	3PS-250 Series

Color	White	Black, White, Red, Yellow, Gray, Pink, Violet, Green, Blue, Brown
Label Size	-	50.8 mm
Label Size	-	2.4 - 6.4 mm
Label Size	-	0.25 - 50.8 mm
Label Size	-	2 - 6.4 mm
Label Size [diameter]	0.25 in	0.25 in
Label Size [diameter]	6.4 mm	0.09 - 6.4 in
Label Size [Max]	5.5 mm	0.21 - 5.5 in
Label Size [Max]	0.22 in	0.22 in
Label Size [Min]	0.09 "	0.09 "
Label Size [Min]	2.4 mm	0.09 - 2.4 in
Label Size [x]	0.67 in	0.67 - 1 in
Label Size [x]	17 mm	12.7 - 50.8 mm
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.25 IN DIA X 0.5 IN W

Part	Label Type	Material	Color	Label Size [diameter]	Label Size [Min]	Label Size [Max]	Label Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]	Label Size [x]	Label Size [diameter]
BRADY 3PS-250-2-BK-4	Heat Shrinkable	Polyolefin (PO)	Black	0.25 in, 6.4 mm	0.09 in, 2.4 mm	0.22 in, 5.5 mm	12.7 mm	135 °C	-55 °C
BRADY 3PS-250-2-WT-S-2	Heat Shrinkable	Polyolefin (PO)	White	6.4 mm	2.4 mm	5.5 mm	25.4 mm	135 °C	-55 °C	0.25 in	0.22 in	1 in	0.09 "
BRADY 3PS-250-2-RD-S	Heat Shrinkable	Polyolefin (PO)	Red	0.09 in, 0.22 in, 0.25 in			50.8 mm	135 °C	-55 °C					50.8 mm	2.4 mm, 5.5 mm, 6.4 mm
BRADY 3PS-250-2-YL-S-4	Heat Shrinkable	Polyolefin (PO)	Yellow	0.25 in, 6.4 mm	0.09 in, 2.4 mm	0.22 in, 5.5 mm	12.7 mm	135 °C	-55 °C
BRADY 3PS-250-2-GY-S-2	Heat Shrinkable	Polyolefin (PO)	Gray	6.4 mm	2.4 mm	5.5 mm	25.4 mm	135 °C	-55 °C	0.25 in	0.22 in	1 in	0.09 "
BRADY 3PS-250-2-PK-2	Heat Shrinkable	Polyolefin (PO)	Pink	6.4 mm	2.4 mm	5.5 mm	25.4 mm	135 °C	-55 °C	0.25 in	0.22 in	1 in	0.09 "
BRADY 3PS-250-2-BK-S	Heat Shrinkable	Polyolefin (PO)	Black	0.09 in, 0.22 in, 0.25 in			50.8 mm	135 °C	-55 °C					50.8 mm	2.4 mm, 5.5 mm, 6.4 mm
BRADY 3PS-250-2-VT-S-2	Heat Shrinkable	Polyolefin (PO)	Violet	6.4 mm	2.4 mm	5.5 mm	25.4 mm	135 °C	-55 °C	0.25 in	0.22 in	1 in	0.09 "
BRADY 3PS-250-2-YL-4	Heat Shrinkable	Polyolefin (PO)	Yellow	0.25 in, 6.4 mm	0.09 in, 2.4 mm	0.22 in, 5.5 mm	12.7 mm	135 °C	-55 °C
BRADY 3PS-250-2-GR-S-2	Heat Shrinkable	Polyolefin (PO)	Green	6.4 mm	2.4 mm	5.5 mm	25.4 mm	135 °C	-55 °C	0.25 in	0.22 in	1 in	0.09 "
