821949-4
ObsoleteTE Connectivity AMP Connectors
CONN SOCKET PQFP 100POS TIN-LEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
821949-4
ObsoleteTE Connectivity AMP Connectors
CONN SOCKET PQFP 100POS TIN-LEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 821949-4 | 821949 Series |
|---|---|---|
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 5.08 µm | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Material - Mating | Phosphor Bronze | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze | Phosphor Bronze |
| Features | Closed Frame | Closed Frame |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 100 | 100 - 132 |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Pitch - Post | 1.27 mm | 1.27 mm |
| Pitch - Post | 0.05 in | 0.05 in |
| Termination | Solder | Solder |
| Termination Post Length | 0.135 in | 0.135 in |
| Termination Post Length | 3.43 mm | 3.43 mm |
| Type | QFP | QFP |
821949 Series
CONN SOCKET PQFP 132POS TIN-LEAD
| Part | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Pitch - Mating | Pitch - Mating | Termination Post Length | Termination Post Length | Mounting Type | Contact Finish - Mating | Number of Positions or Pins (Grid) | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Type | Pitch - Post | Pitch - Post | Contact Material - Post | Contact Material - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-821949-5 | UL94 V-0 | 200 µin | 5.08 µm | Closed Frame | 0.05 in | 1.27 mm | 0.135 in | 3.43 mm | Through Hole | Tin-Lead | 132 | Liquid Crystal Polymer (LCP) | 5.08 µm | 200 µin | Tin-Lead | QFP | 1.27 mm | 0.05 in | Phosphor Bronze | Phosphor Bronze | Solder |
TE Connectivity AMP Connectors 2-821949-4 | UL94 V-0 | 200 µin | 5.08 µm | Closed Frame | 0.05 in | 1.27 mm | 0.135 in | 3.43 mm | Through Hole | Tin-Lead | 100 | Liquid Crystal Polymer (LCP) | 5.08 µm | 200 µin | Tin-Lead | QFP | 1.27 mm | 0.05 in | Phosphor Bronze | Phosphor Bronze | Solder |
TE Connectivity AMP Connectors 821949-4 | UL94 V-0 | 200 µin | 5.08 µm | Closed Frame | 0.05 in | 1.27 mm | 0.135 in | 3.43 mm | Through Hole | Tin-Lead | 100 | Liquid Crystal Polymer (LCP) | 5.08 µm | 200 µin | Tin-Lead | QFP | 1.27 mm | 0.05 in | Phosphor Bronze | Phosphor Bronze | Solder |
TE Connectivity AMP Connectors 821949-5 | UL94 V-0 | 200 µin | 5.08 µm | Closed Frame | 0.05 in | 1.27 mm | 0.135 in | 3.43 mm | Through Hole | Tin-Lead | 132 | Liquid Crystal Polymer (LCP) | 5.08 µm | 200 µin | Tin-Lead | QFP | 1.27 mm | 0.05 in | Phosphor Bronze | Phosphor Bronze | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
821949 Series

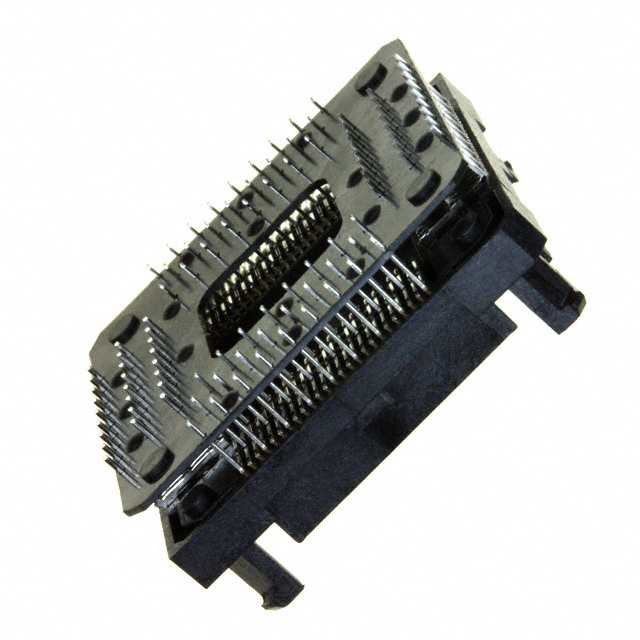

100 (4 x 25) Pos QFP Socket Tin-Lead Through Hole
