DMN2016LHAB-7
ActiveDiodes Inc
TRANSISTOR MOSFET ARRAY DUAL N-CH 20V 7.7A 8-PIN UDFN2030 T/R
DMN2016LHAB-7
ActiveDiodes Inc
TRANSISTOR MOSFET ARRAY DUAL N-CH 20V 7.7A 8-PIN UDFN2030 T/R
Description
General part information
DMN2016LHAB-7
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN2016LHAB-7 |
|---|---|
| Channel Count | 2 |
| Configuration | N-Channel (Dual) Common Drain |
| Current - Continuous Drain (Id) | 7.5 A |
| Drain to Source Voltage (Vdss) | 20 V |
| FET Feature | Logic Level Gate |
| Gate Charge (Max) | 16 nC |
| Input Capacitance (Ciss) (Max) | 1550 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

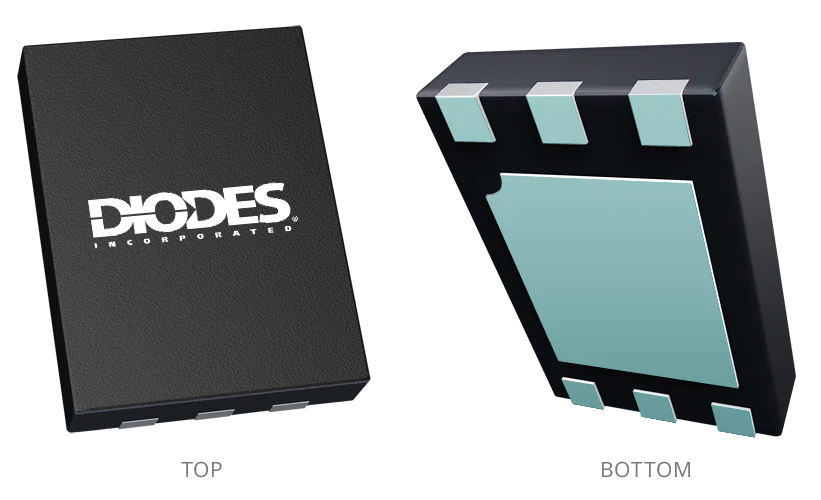

| Package / Case | 6-UDFN Exposed Pad |
| Package Name | U-DFN2030-6 (Type B) |
| Power - Max | 1.2 VA |
| Rds On (Max) | 15.5 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) | 1.1 V |
