LP2W-16S-809-Z
ObsoleteNidec Components Corporation
SWITCH PUSHBUTTON SPDT 3A 125V
LP2W-16S-809-Z
ObsoleteNidec Components Corporation
SWITCH PUSHBUTTON SPDT 3A 125V
Description
General part information
LP2W-16S-809-Z

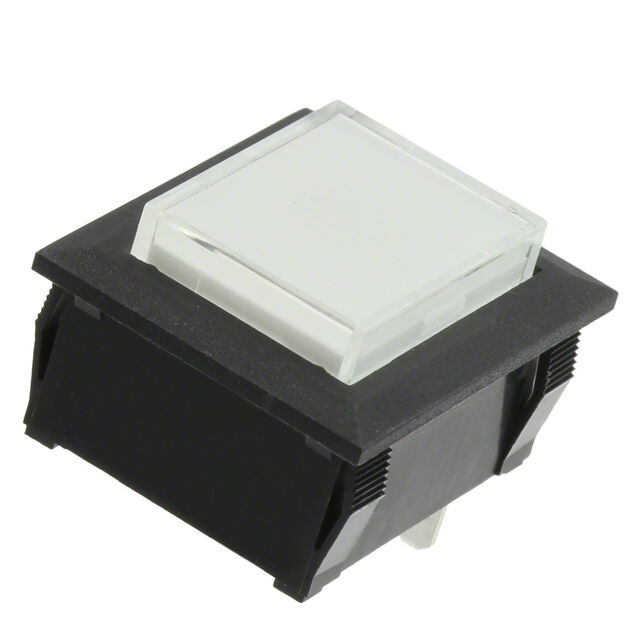

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | LP2W-16S-809-Z |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPDT |
| Color | Yellow |
| Color - Actuator/Cap | Clear |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 30000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 2.2 VDC |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -15 °C |
| Panel Cutout Length | 19.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 16.2 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
