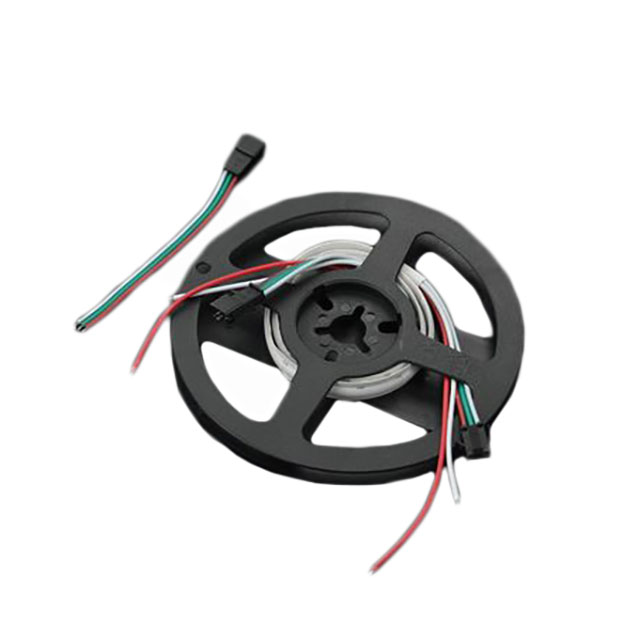

FIT0750

Active

DFRobot

LED MOD RGB LINEAR STRIP

Search across all available documentation for this part.

Active

DFRobot

LED MOD RGB LINEAR STRIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.62

General part information

LED Lighting COBs Engines Modules LED Module - Red, Green, Blue (RGB) Linear Light Strip, Flexible

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FIT0750	FIT0 Series

CCT (K)	-	2200 K
Color	Red, Green, Blue	White, Warm, Yellow, Pink, Red, Green, Blue
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
Current - Max	-	80 mA
Current - Test	-	600 mA
Height	-	1 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES)	-	8 mm
Light Emitting Surface (LES)	-	50 mm
Lumens/Watt @ Current - Test	-	100 lm/W
Luminous Flux @ Current/Temperature	100 lm	100 - 300 lm
Size / Dimension	-	1.8 - 10 mm
Size / Dimension [x]	500 mm	60 - 1000 mm
Type	LED Module	LED Module, Chip On Board (COB)
Viewing Angle	180 °	120 - 180 °
Voltage - Forward (Vf) (Typ)	5 V	3 - 12 V

LED MOD WM WHT LNR STRP 2200K

Part	Configuration	Type	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	Color	Voltage - Forward (Vf) (Typ)	Lens Type	Height [z]	Viewing Angle	Luminous Flux @ Current/Temperature
DFRobot FIT0812	Flexible, Linear Light Strip	LED Module	257 mm	1.8 mm	2200 K	80 mA	Warm, White	3 V
DFRobot FIT0842	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			Yellow	12 V	Flat	1 mm
DFRobot FIT0811	Flexible, Linear Light Strip	LED Module	257 mm	1.8 mm		80 mA	Pink	3 V
DFRobot FIT0835	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			White	3 V	Flat	1 mm
DFRobot FIT0709	Flexible, Linear Light Strip	LED Module	500 mm	10 mm			White	5 V	Flat		120 °
DFRobot FIT0834	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			Warm, White	3 V	Flat	1 mm
DFRobot FIT0836	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			Warm, White	5 V	Flat	1 mm
DFRobot FIT0750	Flexible, Linear Light Strip	LED Module	500 mm				Blue, Green, Red	5 V	Flat		180 °	100 lm
DFRobot FIT0839	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			Green	5 V	Flat	1 mm
DFRobot FIT0837	Flexible, Linear Light Strip	LED Module	1000 mm	2.5 mm			Red	5 V	Flat	1 mm
