PM0S0DM3E
ActiveTE Connectivity AMP Connectors

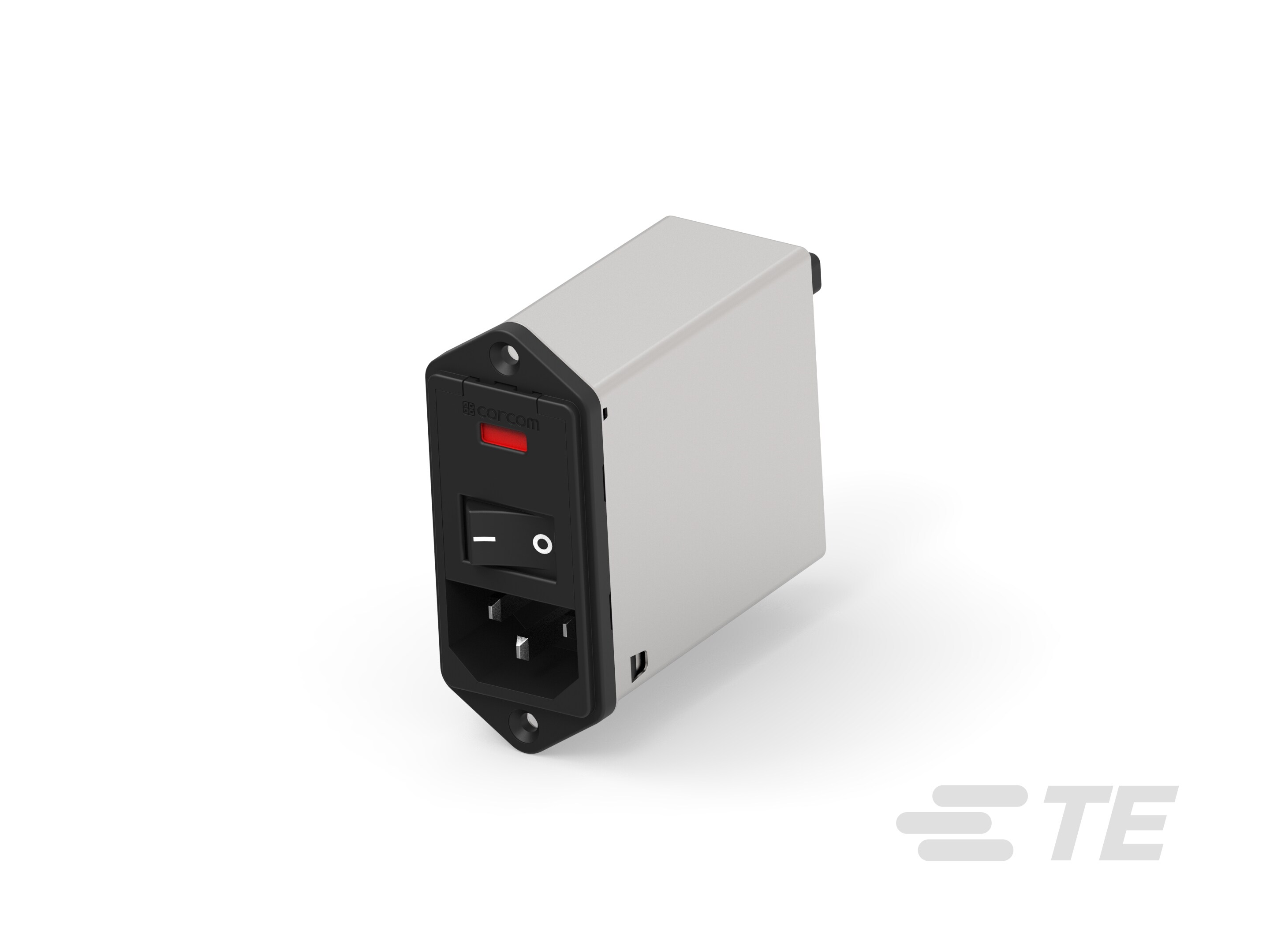

PWR ENT MOD RCPT IEC320-C14 PNL
PM0S0DM3E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Description
General part information
Corcom P Series
Power Entry Module, Single AC Input, DPST, Complete Can, Vertical, 3 A, .187" FASTON Output, 250 VAC, Filtered, Corcom P, Power Entry Modules
Technical Specifications
Parameters and characteristics for this part
| Specification | PM0S0DM3E |
|---|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Approval Agency | VDE, CSA, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades - Module, Receptacle |
| Current Rating - Appliance Inlet | 3 A |
| Current Rating - Filter | 3 A |
| Features | Shielded |
| Filter Application | Commercial |
| Filter Subtype | EMI, RFI |
| Filter Type | Filtered |
| Fuse Holder, Drawer | Twin Fused, Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Panel Cutout Length | 28.45 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 55.91 mm |
| Switch Features | Switch On-Off |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.187 in |
| Voltage Rating - Appliance Inlet (Maximum) | 250 VAC |
| Voltage Rating - Appliance Inlet (Minimum) | 120 VAC |
