Description
General part information

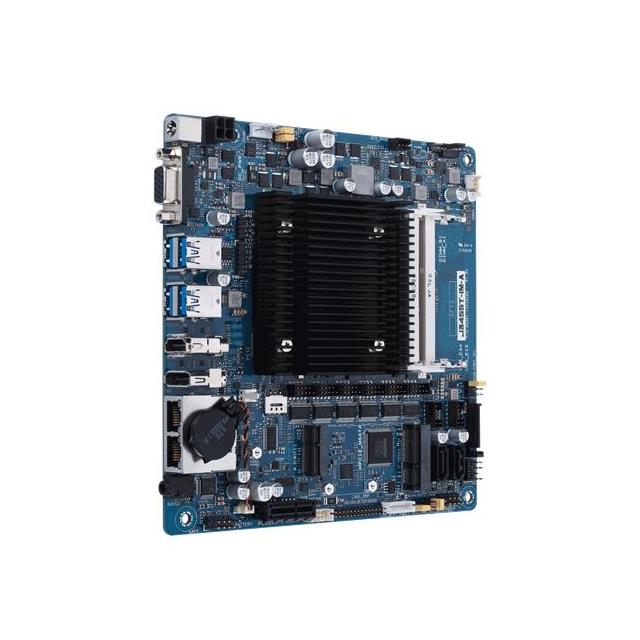

J3455T-IM-A_NO-LVDS
Single Board Computer Core 8GB/0GB RAM Intel®J3455
Technical Specifications
Parameters and characteristics for this part
| Specification | J3455T-IM-A_NO-LVDS |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel®J3455 |
| Ethernet Connector | RJ45 (2) |
| Ethernet Ports | 2 |
| Ethernet Speed Options | 10Mbps, 100Mbps, 1000Mbps |
| Expansion Site/Bus | SATA, M.2, Mini-PCIe, LVDS, LAN, PCIe, VGA, mSATA |
| Form Factor | Mini-ITX |
| Number of Storage Interfaces | 2 count |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Capacity | 8 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 1 |
| Size / Dimension Length | 6.693 in |
| Size / Dimension Width | 6.693 in |
| Storage Interface | SATA, Mini PCIe/mSATA, M.2, SPI |
| Supported Serial Standards | RS-422, RS-232, RS-485 |
| USB | USB 3.0, USB 2.0 |
| USB 2.0 Count | 6 count |
| USB 3.0 Count | 4 count |
| Video Outputs | VGA, DP, LVDS, eDP, HDMI |
| Watchdog Timer | Yes |
