RTE-P1AD24

Active

IDEC Corporation

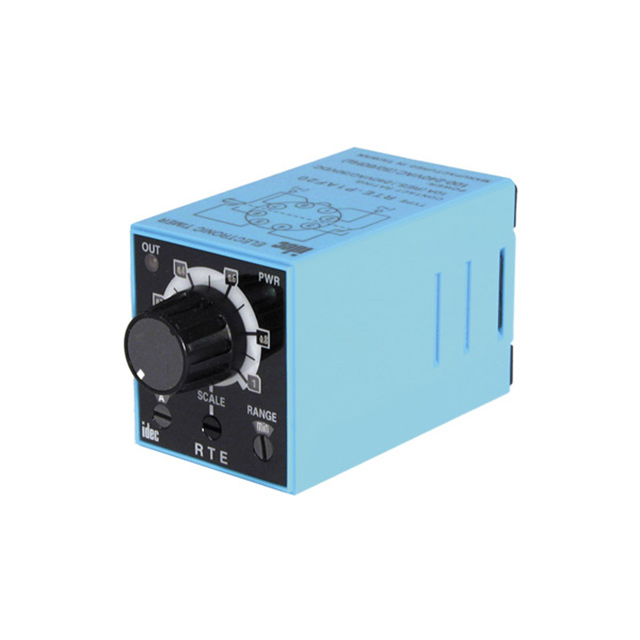

ANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

RTE-P1AD24

Active

IDEC Corporation

ANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTE-P1AD24

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	240 VAC, 30 VDC, 10 A
Delay Time [Max]	600 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	24 VAC

RTE-P1AD Series

ANALOG TIMER, MULTI MODE, CMOS, RTE SERIES, MULTIFUNCTION, 20 RANGES, 0.1 S, 600 H

Part	Termination Style	Relay Type	Timing Initiate Method	Function	Voltage - Supply	Mounting Type	Circuit	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Contact Rating @ Voltage
IDEC Corporation RTE-P1AD24	Plug In, 8 Pin (Octal)	Mechanical Relay	Input Voltage	Programmable (Multi-Function)	24 VAC	Socketable	DPDT (2 Form C)	600 Hrs	0.1 Sec	Hand Dial	10 A, 30 VDC, 240 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.89
		10	$ 61.92
		25	$ 55.95
		50	$ 51.69
		100	$ 47.65
Newark	Each	1	$ 83.69
		5	$ 81.60
		10	$ 79.50
		25	$ 75.32
		50	$ 71.14
		100	$ 66.94

Description

General part information

RTE-P1AD Series

The RTE-P1AD24 is a 24VAC/DC 8-pin multi-function Analog Timer with plug-in termination and 2-changeover relay. The RTE series timer includes 10 timing functions and 2 form C DPDT (delayed output) contacts. It features 20 time ranges from 0.1second to 600hours, solid state CMOS circuit operation system, 500000 operations minimum resistive electrical life and 50000000 operations minimum mechanical life.
