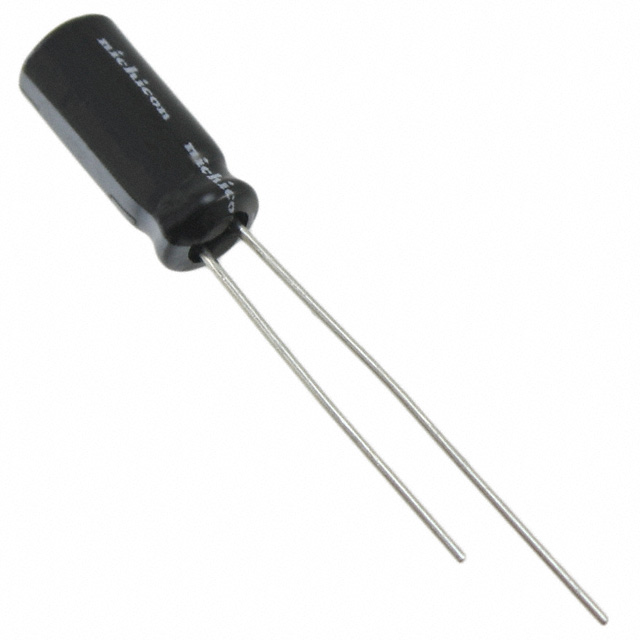

Specification	UHE1V330MDD

Applications	General Purpose
Capacitance	33 µF
Height - Seated (Max)	0.433 in
Impedance	580 mOhm
Lead Spacing	0.079 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	115.5 mA, 210 mA
Size / Dimension Diameter	0.197 in
Tolerance	20 %
Voltage - Rated	35 V

UHE Series

Part	Impedance	Package / Case	Applications	Lifetime	Polarization	Tolerance	Ripple Current	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Lead Spacing	Height - Seated (Max)	Size / Dimension Diameter	Capacitance
Nichicon UHE1V221MPD1TA	87 mOhm	Can Radial	General Purpose	7000 Hrs	Polar	20 %	588 mA 840 mA	35 V	-40 °C	105 °C	Through Hole	0.138 in	16.51 mm	0.315 in	220 µF
Nichicon UHE2A680MPD1TD	310 mOhm	Can Radial	General Purpose	7000 Hrs	Polar	20 %	280 mA 400 mA	100 VAC/DC	-40 °C	105 °C	Through Hole	0.197 in	0.689 in	0.394 in	68 µF
Nichicon UHE1A102MPD1TA	69 mOhm	Can Radial	General Purpose	6000 Hrs	Polar	20 %	1.05 A 787.5 mA	10 V	-40 °C	105 °C	Through Hole	0.138 in	0.866 in	0.315 in	1000 µF
Nichicon UHE1V182MHD6TN	21 mOhms	Can Radial	General Purpose	10000 Hrs	Polar	20 %	2.344 A 2.93 A	35 V	-40 °C	105 °C	Through Hole	0.295 in	1.063 in	0.63 in	1800 µF
Nichicon UHE1E821MPD1TD	42 mOhm	Can Radial	General Purpose	7000 Hrs	Polar	20 %	1.238 A 1.65 A	25 VAC	-40 °C	105 °C	Through Hole	0.197 in	1.063 in	0.394 in	820 µF
Nichicon UHE0J152MPD	46 mOhms	Can Radial	General Purpose	6000 Hrs	Polar	20 %	1.12 A 1.4 A	6.3 V	-40 °C	105 °C	Through Hole	0.197 in	0.787 in	0.394 in	1500 µF
Nichicon UHE1C471MPD	87 mOhm	Can Radial	General Purpose	7000 Hrs	Polar	20 %	630 mA 840 mA	16 V	-40 °C	105 °C	Through Hole	0.138 in	0.591 in	0.315 in	470 µF
Nichicon UHE1H121MPD1TA	120 mOhms	Can Radial	General Purpose	7000 Hrs	Polar	20 %	511 mA 730 mA	50 V	-40 °C	105 °C	Through Hole	0.138 in	16.51 mm	0.315 in	120 µF
Nichicon UHE1H561MHD	34 mOhm	Can Radial	General Purpose	10000 Hrs	Polar	20 %	1.463 A 1.95 A	50 V	-40 °C	105 °C	Through Hole	0.197 in	0.984 in	0.492 in	560 µF
Nichicon UHE1E331MPD1TA	87 mOhm	Can Radial	General Purpose	7000 Hrs	Polar	20 %	588 mA 840 mA	25 VAC	-40 °C	105 °C	Through Hole	0.138 in	16.51 mm	0.315 in	330 µF
