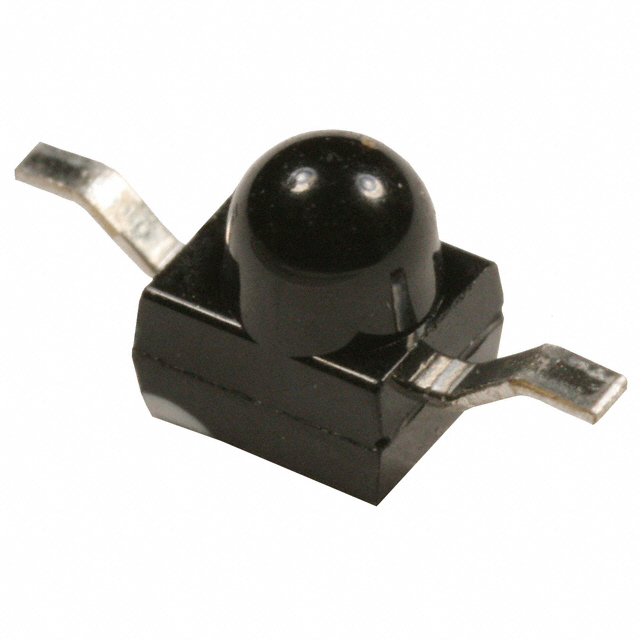

OP573
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM TOP VIEW 2SMD
OP573
ObsoleteTT Electronics/BI
SENSOR PHOTO 935NM TOP VIEW 2SMD
Description
General part information
OP573
Phototransistors 935nm Top View 2-SMD, Z-Bend
Technical Specifications
Parameters and characteristics for this part
| Specification | OP573 |
|---|---|
| Current - Collector (Ic) (Max) | 20 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | Top View |
| Package / Case | Z-Bend, 2-SMD |
| Power - Max | 130 mW |
| Viewing Angle | 25 ° |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 935 nm |
