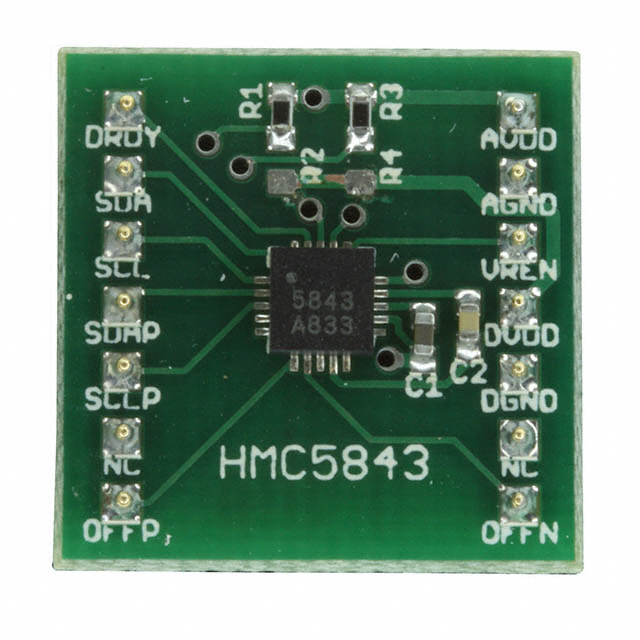

HMC5843-EVAL
ObsoleteHoneywell Aerospace
BOARD EVALUATION FOR HMC5843
HMC5843-EVAL
ObsoleteHoneywell Aerospace
BOARD EVALUATION FOR HMC5843
Description
General part information
HMC5843-EVAL
HMC5843 - Magnetic, Digital Compass Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | HMC5843-EVAL |
|---|---|
| Contents | Board |
| Embedded | No |
| Interface | I2C |
| Sensing Range (Max) | 4 g |
| Sensing Range (Min) | -4 g |
| Sensitivity | 7 milligauss |
| Sensor Type | Magnetic, Digital Compass |
| Supplied Contents | Board(s) |
| Utilized IC / Part | HMC5843 |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.5 V |
