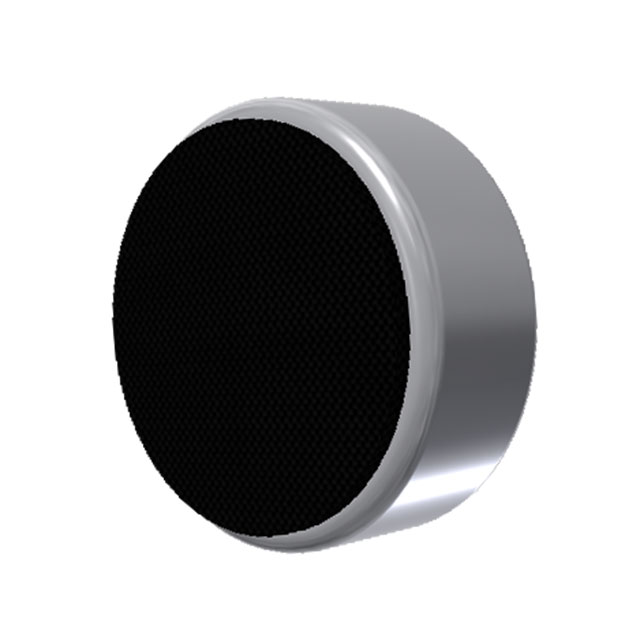

TOM-1537L-HD-R
ActivePUI Audio, Inc.
MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -37 DB, 110 DB AOP, 68DB SNR, 2 PINS, 1 TO 10 VDC
TOM-1537L-HD-R
ActivePUI Audio, Inc.
MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -37 DB, 110 DB AOP, 68DB SNR, 2 PINS, 1 TO 10 VDC
Description
General part information
TOM-1537L-HD-R
20 Hz ~ 20 kHz Analog Microphone Electret Condenser Omnidirectional (-37dB ±3dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | TOM-1537L-HD-R |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 20 Hz |
| Height (Max) | 0.067 in |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 68 dB |
| Sensitivity (Nominal) | -37 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.157 in |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 3 VDC |
