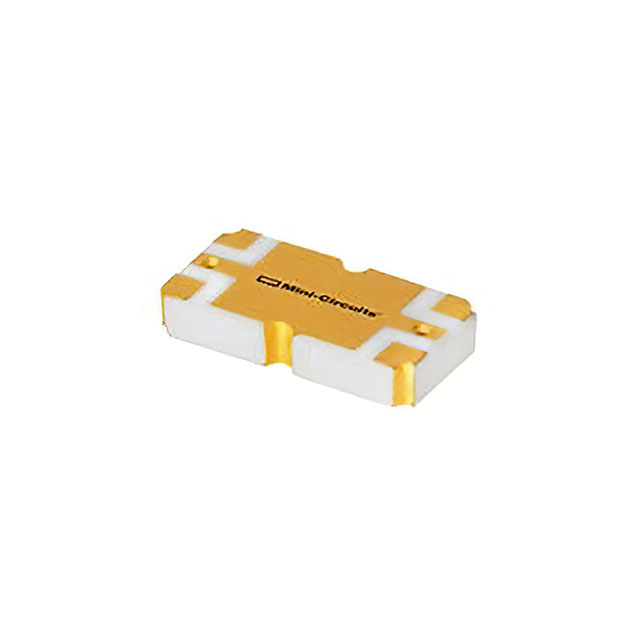

MBD-20-63HP+
RF Directional Coupler ISM, WiMAX 5GHz ~ 6GHz 20 ± 0.5dB 8-VQFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | MBD-20-63HP+ |
|---|---|
| Applications | WiMax, ISM |
| Coupler Type | Standard |
| Coupling Factor | 20 dB |
| Coupling Factor Tolerance | 0.5 dB |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 5 GHz |
| Package / Case | 8-VQFN Exposed Pad |
| Package Length | 3 mm |
| Package Name | 8-QFN |
| Package Width | 3 mm |
| Return Loss | 50.81 dB |
