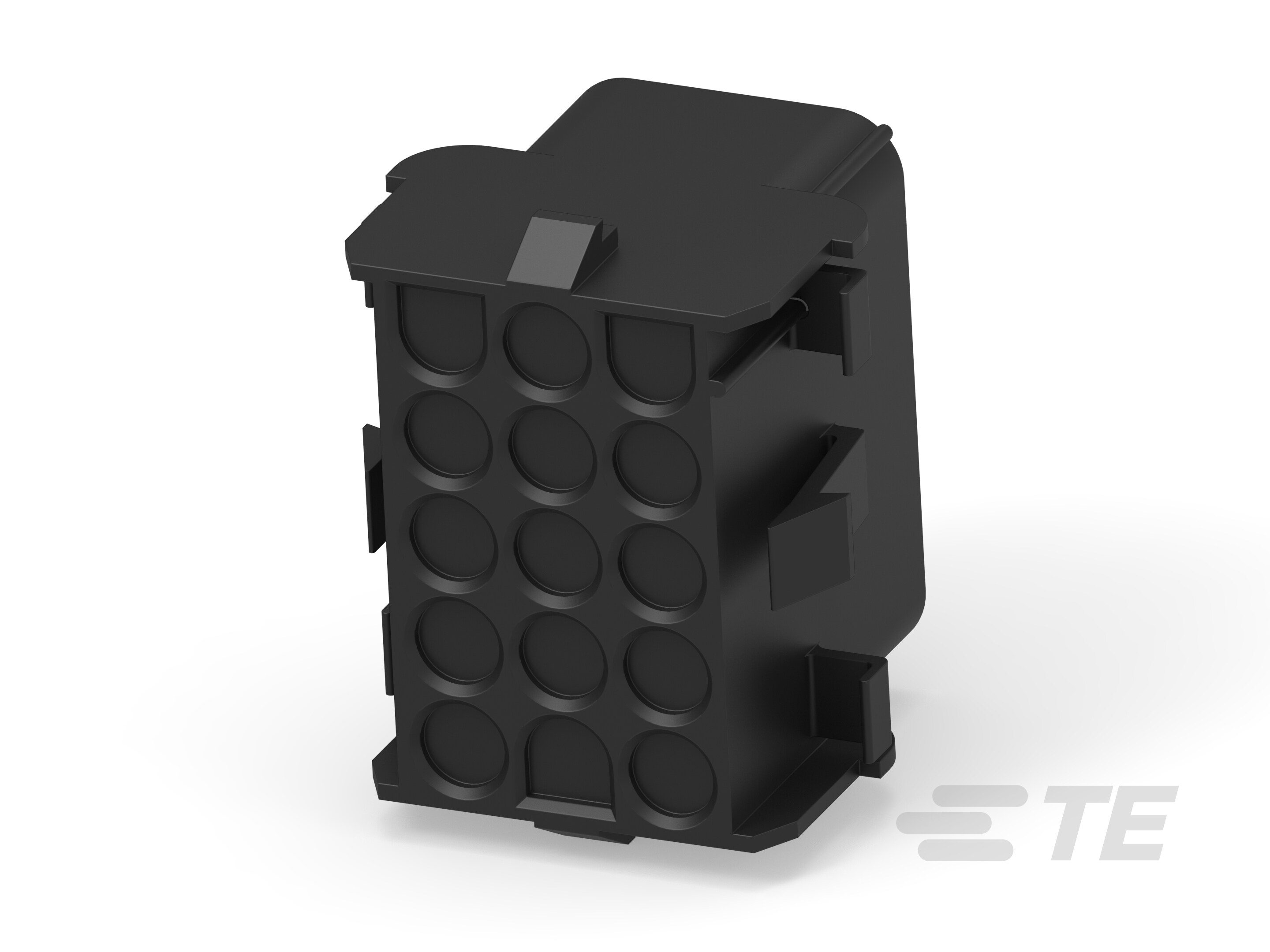

Specification	1-480711-9

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Row Spacing	0.25 in

Universal MATE-N-LOK Series

...
