1354-1
ActiveKeystone Electronics
CONN PC PIN CIRC 0.032DIA GOLD
1354-1
ActiveKeystone Electronics
CONN PC PIN CIRC 0.032DIA GOLD
Description
General part information
1354-1

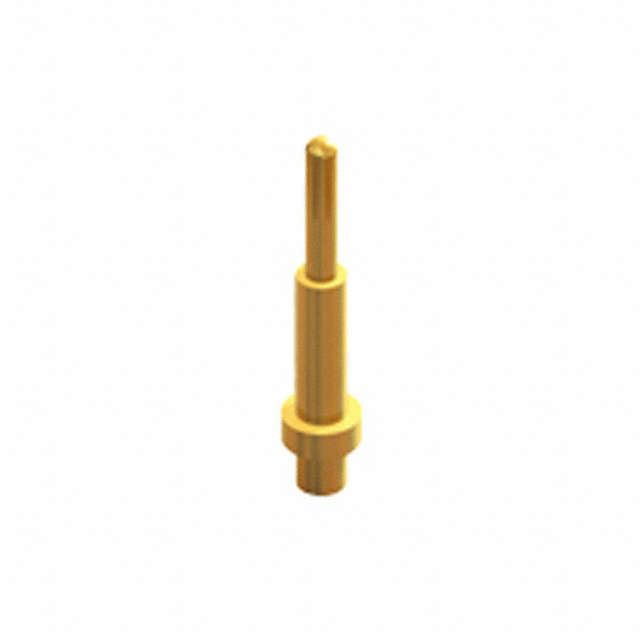

PC Pin Terminal Connector Through Hole Gold 0.032" (0.81mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 1354-1 |
|---|---|
| Board Thickness | 0.032 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass |
| Flange Diameter | 0.078 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.312 in |
| Length - Below Flange | 0.051 in |
| Length - Overall | 0.393 in |
| Mounting Hole Diameter | 0.052 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.032 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
