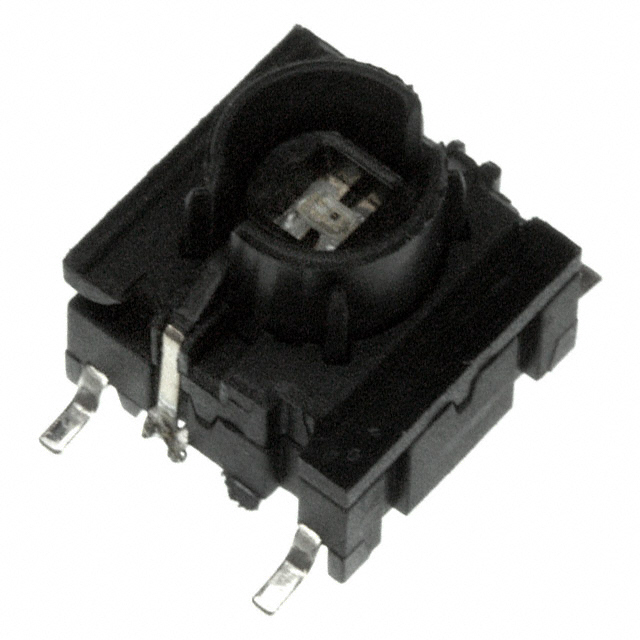

4FSH942
ActiveMEC Switches
ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 24V 3N TACTILE SWITCHES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4FSH942
ActiveMEC Switches
ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 24V 3N TACTILE SWITCHES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4FSH942 |
|---|---|
| Actuator Height off PCB, Vertical | 10.4 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 10.1 mm |
| Outline [y] | 10.1 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4FSH942
Tactile Switch SPST-NO Top Actuated Surface Mount
