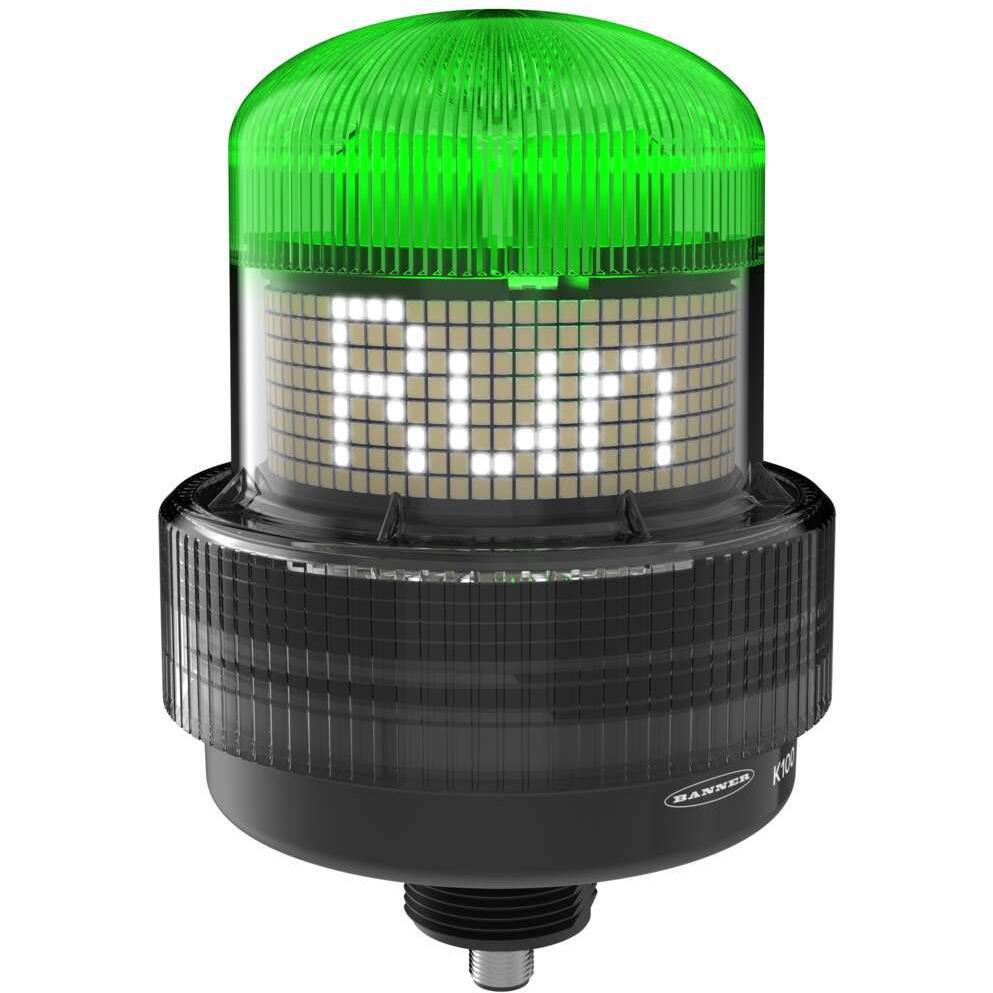

K100PDBLRGBD15AQ
ActiveBANNER ENGINEERING
AUDIBLE STATUS DISPLAY DISCRETE
K100PDBLRGBD15AQ
ActiveBANNER ENGINEERING
AUDIBLE STATUS DISPLAY DISCRETE
Description
General part information
K100PDBLRGBD15AQ
AUDIBLE STATUS DISPLAY DISCRETE
Technical Specifications
Parameters and characteristics for this part
| Specification | K100PDBLRGBD15AQ |
|---|---|
| Function - Audible | Continuous |
| Function - Lighting | Steady |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP66, IP69K |
| Lamp Type | LED |
| Light Color | RGB, Configurable, Green, Blue, Red |
| Number of Stacks | 1, 14 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Connector, M12 |
| Type | Beacon, Complete Unit |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
