RWM063447R0JS09E1
ActiveVishay Dale
RESISTOR 47 OHM 8W 5% WIREWOUND
RWM063447R0JS09E1
ActiveVishay Dale
RESISTOR 47 OHM 8W 5% WIREWOUND
Description
General part information
RWM063447R0JS09E1

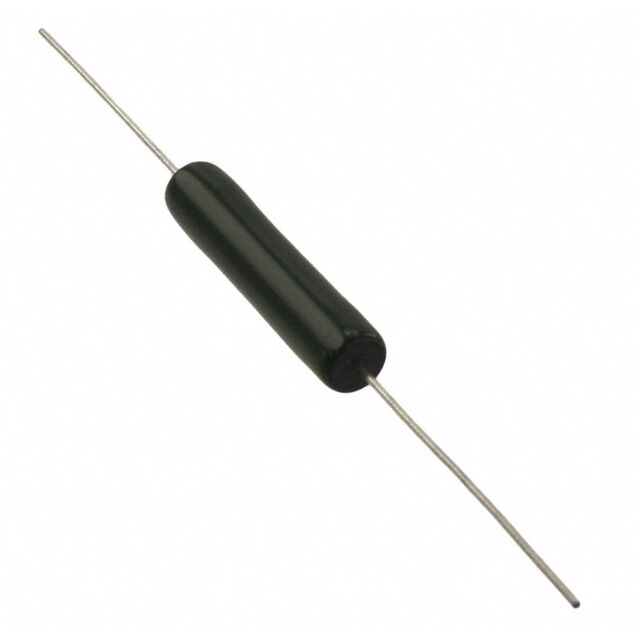

47 Ohms ±5% 8W Through Hole Resistor Axial Flame Proof, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RWM063447R0JS09E1 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 8 W |
| Resistance | 47 Ohms |
| Size / Dimension Diameter | 0.291 in |
| Size / Dimension Length | 1.327 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
