LCCA30336-FT1.5
ActivePasternack
7/16 DIN MALE TO N FEMALE USING
LCCA30336-FT1.5
ActivePasternack
7/16 DIN MALE TO N FEMALE USING
Description
General part information
LCCA30336-FT1.5

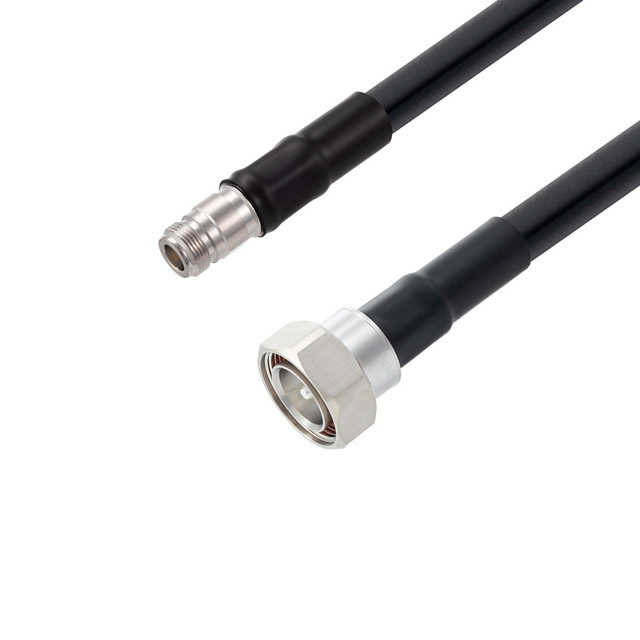

Cable Assembly Coaxial 7/16 DIN to N-Type LMR 600 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30336-FT1.5 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 600 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to N-Type |
