TD2-1D-DC-3-H

Active

Switch Components

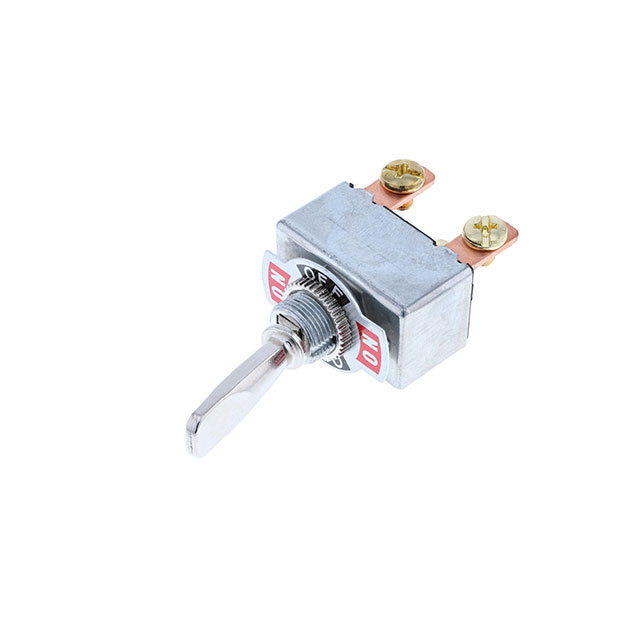

SWITCH TOGGLE SPDT 50A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 50A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TD2-1D-DC-3-H

Actuator Length [x]	28.4 mm
Actuator Material	Zinc Alloy, Nickel Plated
Actuator Type	Flatted
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 50A 12V

Part	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Switch Function	Electrical Life	Voltage Rating - DC	Illumination	Current Rating (Amps)	Termination Style	Circuit	Actuator Material	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread
Switch Components TD2-1D-DC-3-H	12.2 mm	28.4 mm	On-On	6000 Cycles	12 V	Non-Illuminated	50 A	Screw Terminal	SPDT	Zinc Alloy, Nickel Plated	Flatted	85 °C	-20 C	15/32-32
