Description
General part information

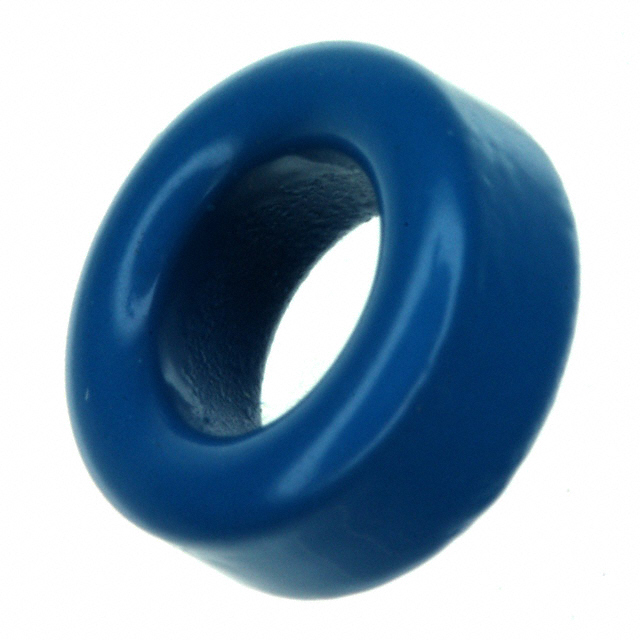

B64290L0616X038
Epoxy T38 Ferrite Core Toroid Type Length Width 1.047" (26.60mm) Diameter 0.839" (21.30mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B64290L0616X038 |
|---|---|
| Core Factor (ΣI/A) | 0.59 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.59 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 1.047 in |
| Effective Area (Ae) | 102.5 mm² |
| Effective Length (le) | 60.07 mm |
| Effective Magnetic Volume (Ve) | 6157 mm³ |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.839 in |
| Inductance Factor (Al) | 21.3 µH |
| Initial Permeability (µi) | 10000 |
| Material | T38 |
| Tolerance | 30 % |
