F472K96Y5RP83K0R
ActiveVishay Dale
CAP CER 4700PF 2KV Y5R RADIAL
F472K96Y5RP83K0R
ActiveVishay Dale
CAP CER 4700PF 2KV Y5R RADIAL
Description
General part information
F472K96Y5RP83K0R

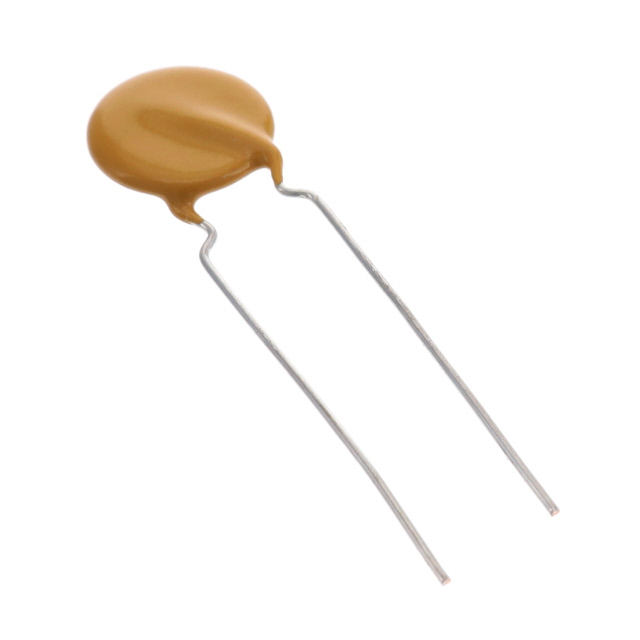

4700 pF ±10% 2000V (2kV) Ceramic Capacitor Y5R Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | F472K96Y5RP83K0R |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 4700 pF |
| Features | High Voltage |
| Lead Spacing | 0.394 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.965 in |
| Temperature Coefficient | Y5R |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
