1-2842497-2
ActiveTE Connectivity AMP Connectors

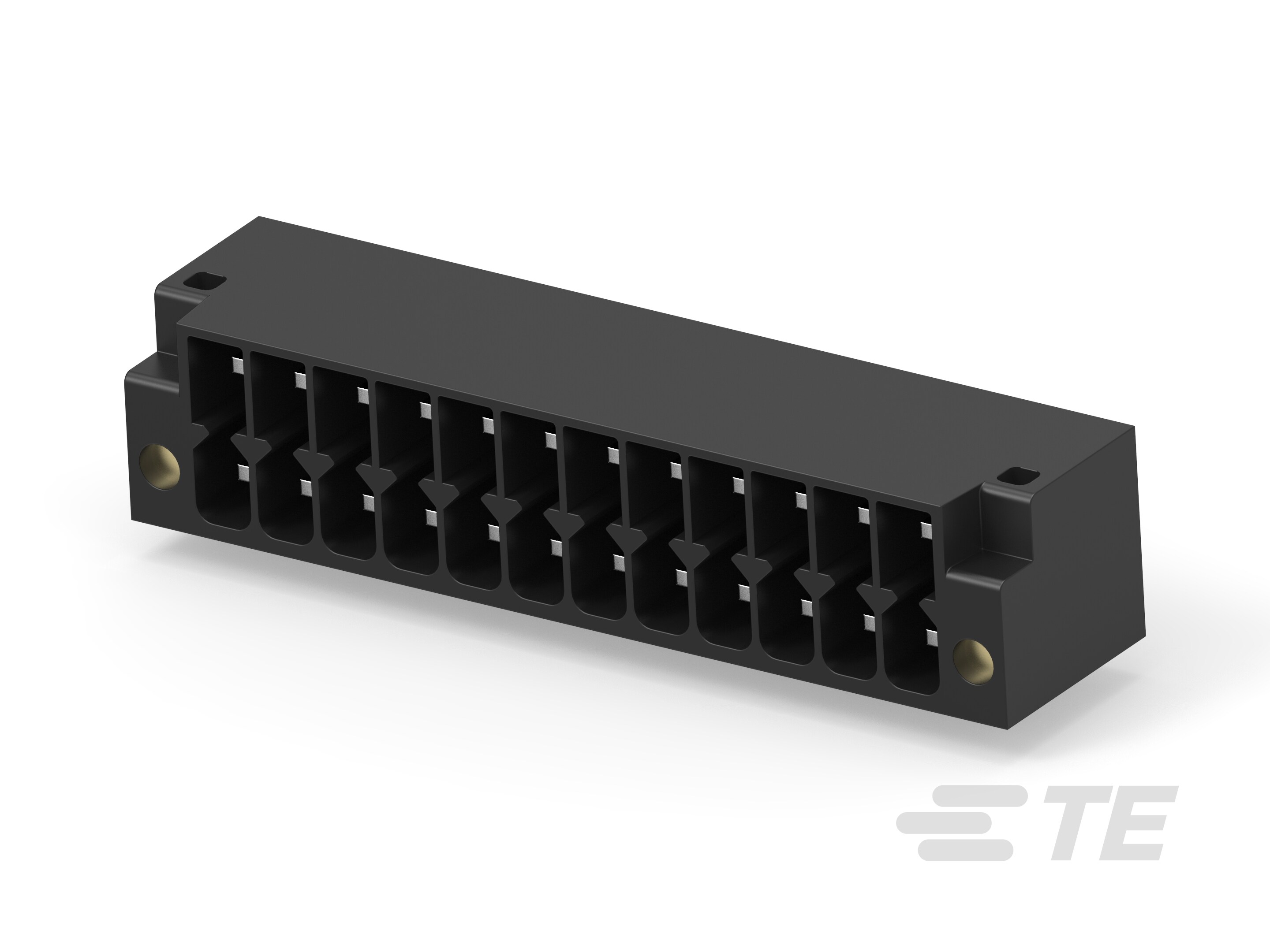

2X12P TB HDR HZ (90) W/ FLG 3.5, BK
1-2842497-2
ActiveTE Connectivity AMP Connectors
2X12P TB HDR HZ (90) W/ FLG 3.5, BK
Description
General part information
1-2842497-2
24 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.137 in] Centerline, 2 Row, 150 VAC, Printed Circuit Board, Horizontal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2842497-2 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - UL | 8 A |
| Features | Flange |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 12 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 150 V |
