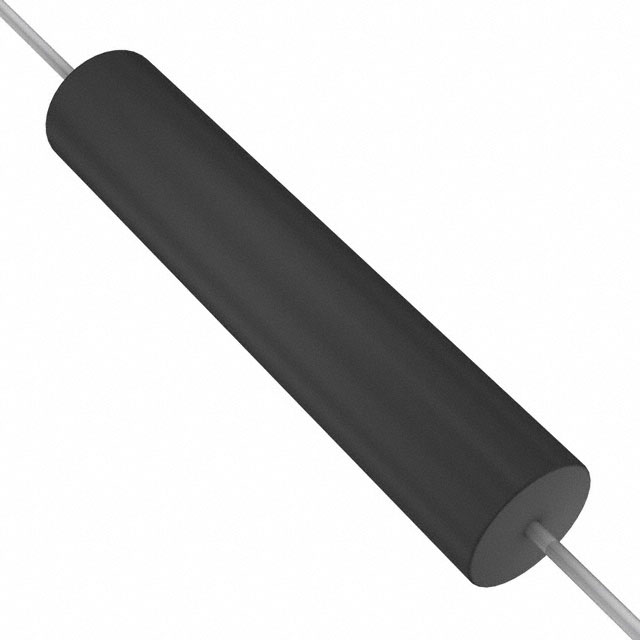

MT10-0R05F1
ActiveBourns Inc.
RES 0.05 OHM 1% 10W AXIAL
MT10-0R05F1
ActiveBourns Inc.
RES 0.05 OHM 1% 10W AXIAL
Description
General part information
MT10-0R05F1
50 mOhms ±1% 10W Through Hole Resistor Axial Current Sense, Flame Proof, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MT10-0R05F1 |
|---|---|
| Composition | Thick Film, Metal Element |
| Features | Flame Proof, Pulse Withstanding, Current Sense, Non-Inductive, Safety, Moisture Resistant |
| Number of Terminations | 2 |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 10 W |
| Resistance | 0.05 Ohms |
| Size / Dimension Diameter | 0.355 in |
| Size / Dimension Length | 1.755 in |
| Tolerance | 1 % |
