9080LBA365202
ActiveSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 620A
9080LBA365202
ActiveSCHNEIDER ELECTRIC
PWR DISTR BLK 600V 620A
Description
General part information
9080LBA365202

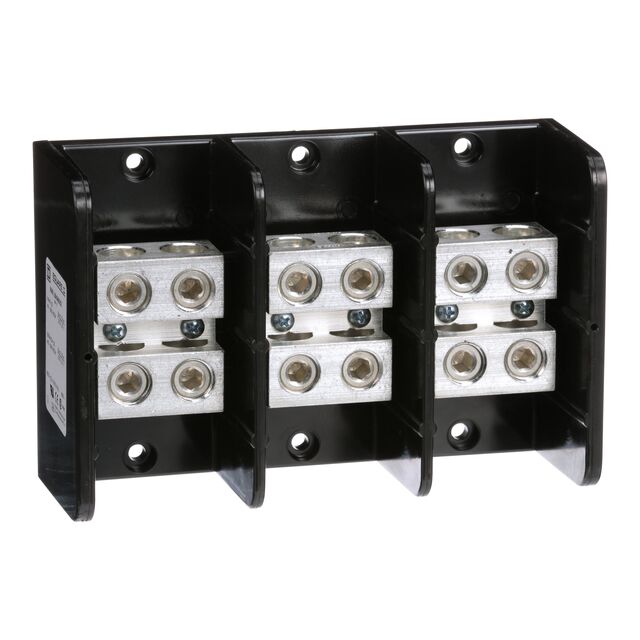

3 Pole Power Distribution Block 620 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080LBA365202 |
|---|---|
| Current Rating | 620 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Cross-sectional Area | 350 MCM |
| Line Side Wire/Stud Designation | 6, AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Wire/Stud Size (Area) | 350 MCM |
| Load Side Wire/Stud Size (Designation) | 6 AWG |
| Number of Poles | 3 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
