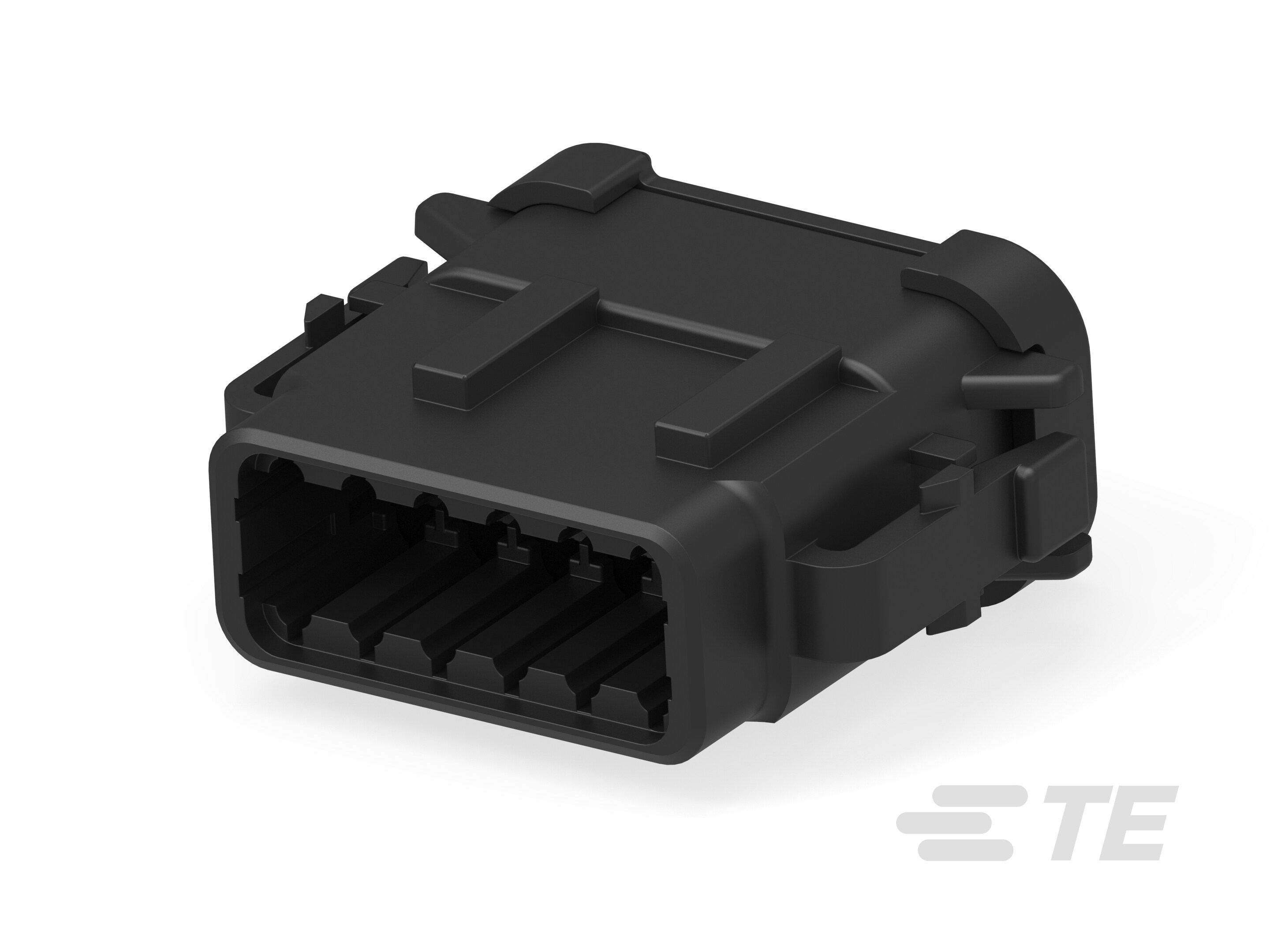

DTM06-12SB-E003
ActiveTE Connectivity AMP Connectors
PLG, 12P, BLK, N, CAP, B
DTM06-12SB-E003
ActiveTE Connectivity AMP Connectors
PLG, 12P, BLK, N, CAP, B
Description
General part information
DEUTSCH DT Series
12 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.81 mm [.15 in] Centerline, Sealable, Black, Wire & Cable, Power, Hybrid
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM06-12SB-E003 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Cap (Cover), IP68, IP6K9K |
| Insulation Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
