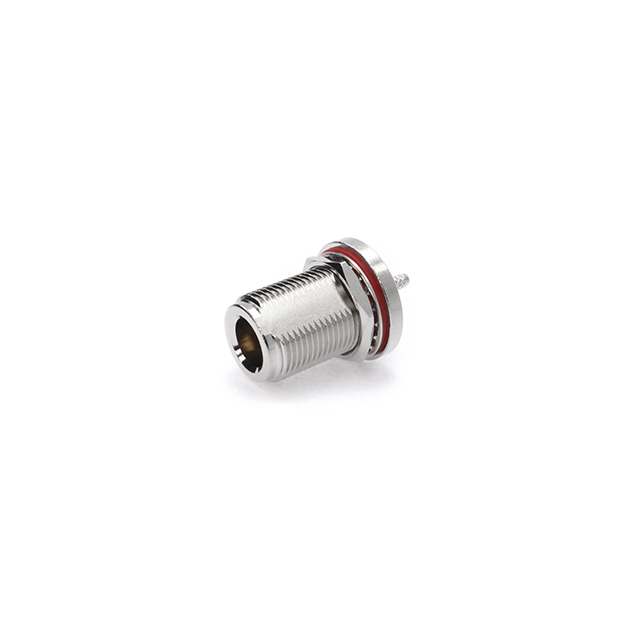

Specification	IPRF-N-J24A0N01-M-5

Connector Style	N Type
Connector Type	Jack, Female Socket
Fastening Type	Threaded
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1

IPRF Series

Part	Fastening Type	Frequency - Max	Connector Style	Number of Ports	Connector Type	Ingress Protection IP Rating	Ingress Protection Description	Contact Termination	Impedance	Shield Termination	Mounting Type	Center Contact Material	Housing Color	Mounting Feature	Cable Group	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Body Finish	Dielectric Material	Voltage Rating	Center Contact Plating
PEI-Genesis IPRF-HB-J18P0N01-AT-R	Threaded	12 Gbps	BNC	1	Female Socket Jack	IP68	Dust Tight Waterproof	Crimp
PEI-Genesis IPRF-MM-J11A0G29	Snap-On	6000 MHz	MMCX	1	Female Socket Jack	IP68	Dust Tight Waterproof	Solder	50 Ohm	Solder	Right Angle Through Hole	Beryllium Copper	Gold
PEI-Genesis IPRF-B-J20C0N02-H-5	Threaded		BNC	1	Female Socket Jack	IP68	Dust Tight Waterproof	Crimp			Panel Mount			Bulkhead Front Side Nut
PEI-Genesis IPRF-S-P01P0G27-M	Threaded	12.4 GHz	SMA	1	Male Pin Plug	IP68	Dust Tight Waterproof	Crimp	50 Ohm	Crimp	Free Hanging (In-Line)	Brass	Gold		188 316 Belden 7805A LMR-100 RG-174 URM95	-65 °C	165 °C	Brass	Gold	Polytetrafluoroethylene (PTFE)	500 V	Gold
PEI-Genesis IPRF-HB-P01P0N01-AT-R	Bayonet Lock	12 Gbps	BNC	1	Male Pin Plug	IP68	Dust Tight Waterproof	Crimp	75 Ohm	Crimp	Free Hanging (In-Line)	Brass	Silver		Belden 1855ENH
PEI-Genesis IPRF-HB-P01P0N01-AT-R
PEI-Genesis IPRF-B-J20C0N02-H-5	Threaded		BNC	1	Female Socket Jack	IP68	Dust Tight Waterproof	Crimp			Panel Mount			Bulkhead Front Side Nut
PEI-Genesis IPRF-UB-J03P0G23-R0	Bayonet Lock	12 Gbps	BNC	1	Female Socket Jack	IP68	Dust Tight Waterproof	Solder	75 Ohm	Solder	Panel Mount	Beryllium Copper	Gold	Bulkhead Front Side Nut
PEI-Genesis IPRF-UB-J03P0G23-R0	Bayonet Lock	12 Gbps	BNC	1	Female Socket Jack	IP68	Dust Tight Waterproof	Solder	75 Ohm	Solder	Panel Mount	Beryllium Copper	Gold	Bulkhead Front Side Nut		-65 °C	165 °C	Brass	Gold	Polytetrafluoroethylene (PTFE)	500 V	Gold
PEI-Genesis IPRF-S-P01P0G27-M	Threaded	12.4 GHz	SMA	1	Male Pin Plug	IP68	Dust Tight Waterproof	Crimp	50 Ohm	Crimp	Free Hanging (In-Line)	Brass	Gold		188 316 Belden 7805A LMR-100 RG-174 URM95
