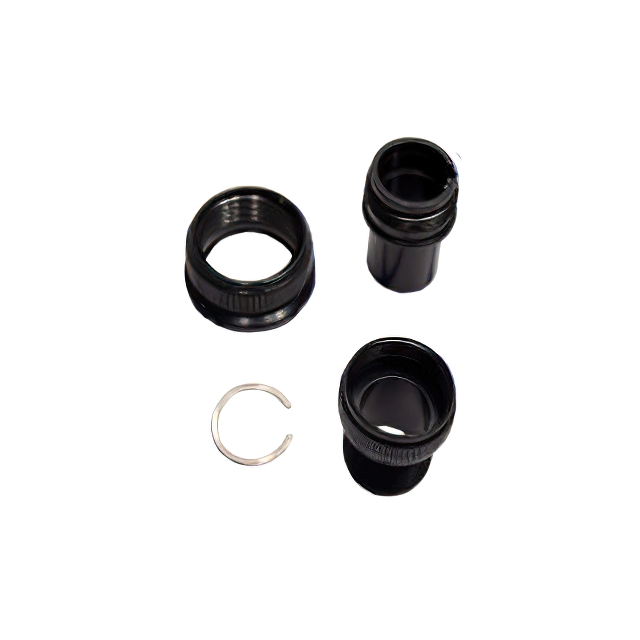

DMS3106A12S-F
ActiveFujikura America, Inc.
CONNECTOR. SHELL STYLE: STRAIGHT
DMS3106A12S-F
ActiveFujikura America, Inc.
CONNECTOR. SHELL STYLE: STRAIGHT
Description
General part information
DMS3106A12S-F
Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | DMS3106A12S-F |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Housing Color | Black |
| Insert Material | Diallyl Phthalate, DAP |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 12S |
| Shielding | Unshielded |
| Type | For Female Sockets or Male Pins |
