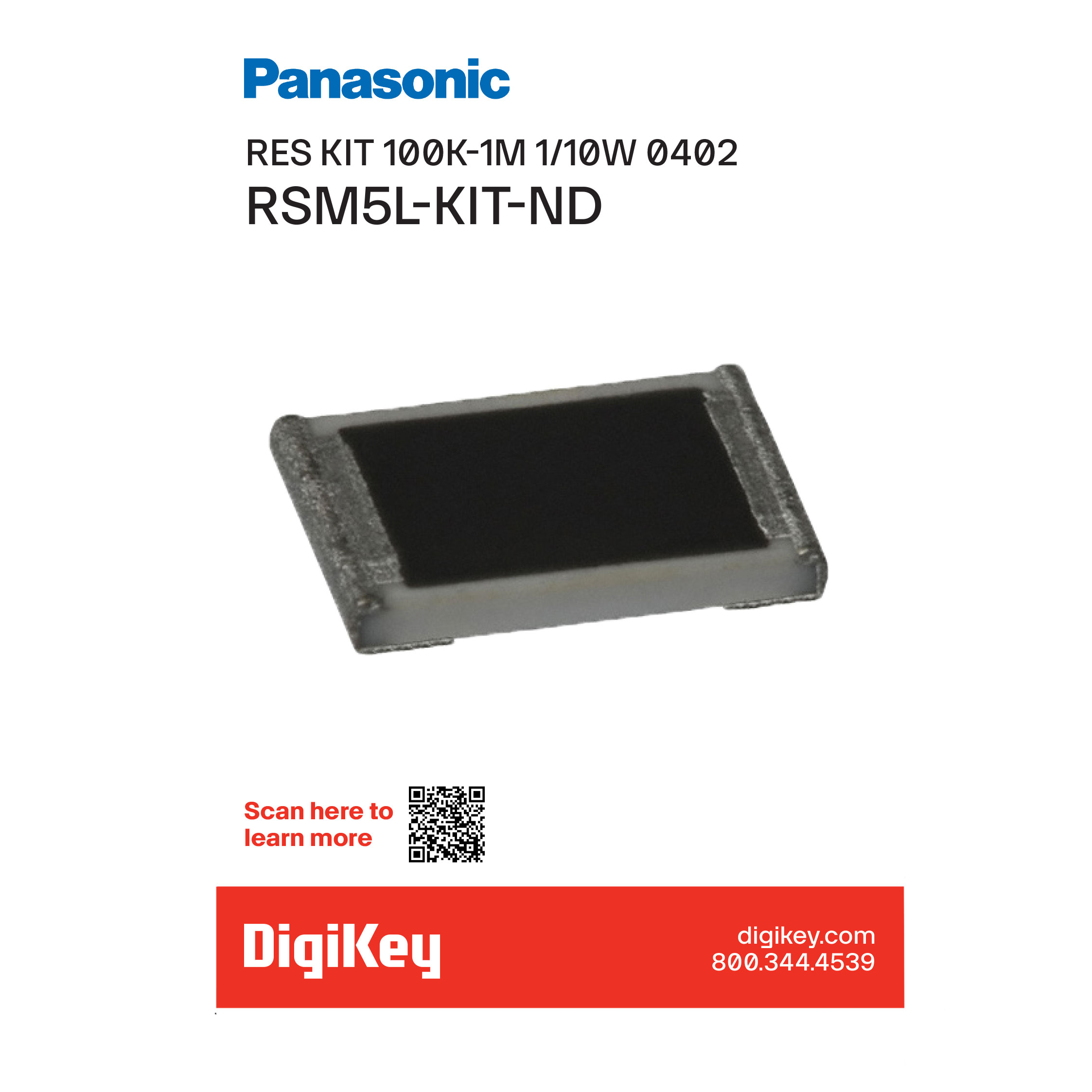

RSM5L
ActivePanasonic Electronic Components
RES KIT 100K-1M 1/10W 4850PCS
RSM5L
ActivePanasonic Electronic Components
RES KIT 100K-1M 1/10W 4850PCS
Description
General part information
RSM5L
Thick Film Resistor Kit 100k ~ 1M Ohm ±1% 1/10W Surface Mount 4850 Pieces (97 Values - 50 Each)
Technical Specifications
Parameters and characteristics for this part
| Specification | RSM5L |
|---|---|
| Features | Automotive AEC-Q200 |
| Kit Type | Thick Film |
| Mounting Type | Surface Mount |
| Packages Included | 0402 (1005 Metric) |
| Power (Watts) Options | 1/10W |
| Quantity | 4850 Pieces |
| Quantity per Value | 50 Each |
| Quantity Values | 97 Values |
| Resistance (Maximum) | 1 MOhm |
| Resistance (Minimum) | 100 kOhm |
| Tolerance | 1 % |
