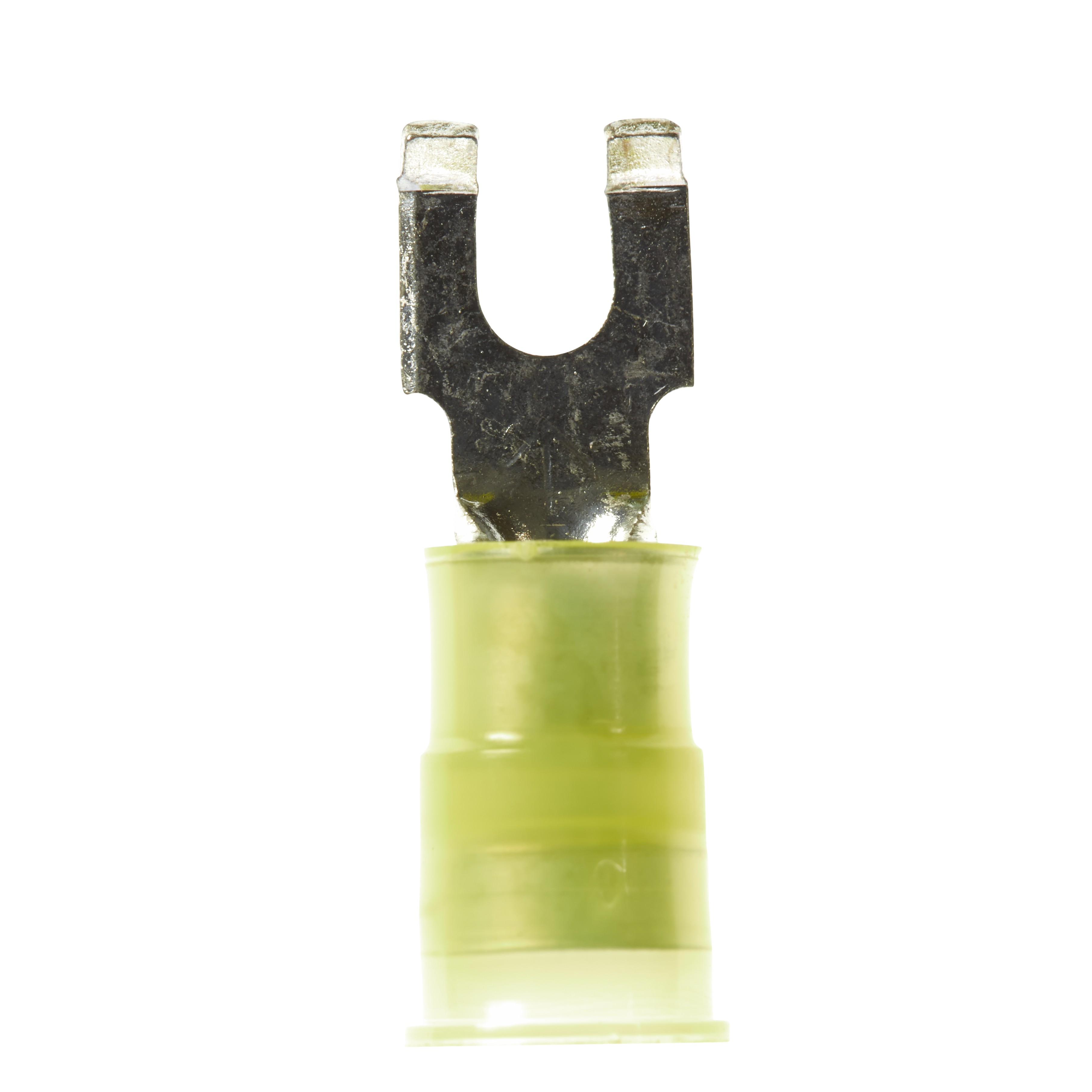

MNG10-6FX-BOTTLE
Active3M Electronic Specialty
CONN SPADE TERM 10-12AWG #6 50PC
MNG10-6FX-BOTTLE
Active3M Electronic Specialty
CONN SPADE TERM 10-12AWG #6 50PC
Description
General part information
MNG10-6FX-BOTTLE
CONN SPADE TERM 10-12AWG #6 50PC
Technical Specifications
Parameters and characteristics for this part
| Specification | MNG10-6FX-BOTTLE |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Insulation | Insulated |
| Length - Overall | 1.03 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.38 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
