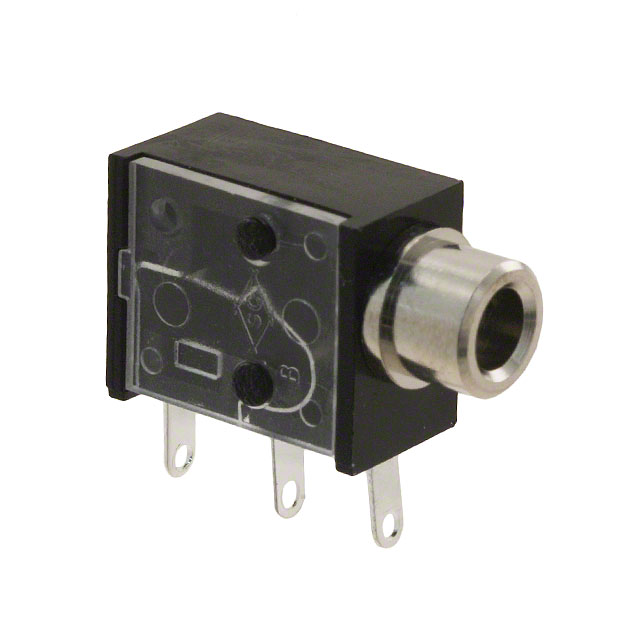

MJ-3502
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | MJ-3502 |
|---|---|
| Actual Diameter | 0.142 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating | Silver |
| Current Rating | 1 A |
| Features | Mounting Hardware, Thread Lock |
| Gender | Female |
| Housing Material | POM, Polyoxymethylene |
| Includes | Nut, Connector |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Internal Switch(s) | Single Switch |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Hole Size | 0.236 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Thread Size | M6 |
| Voltage - Rated | 12 VAC |
