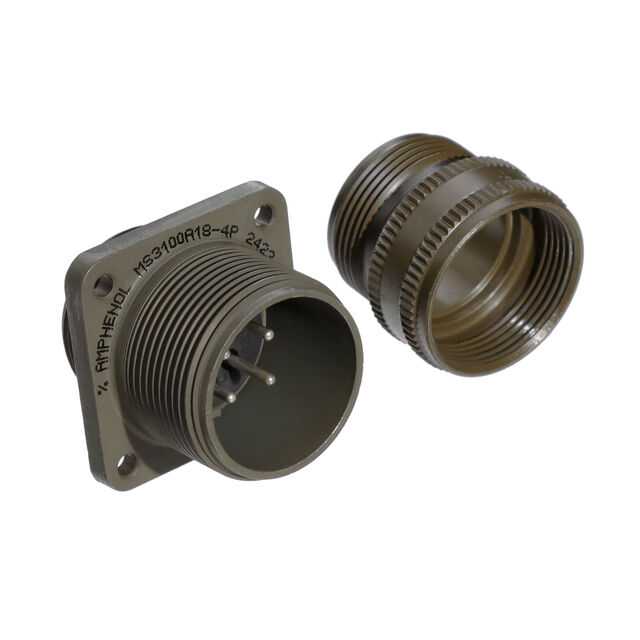

Specification	MS3100A18-4P

Applications	Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating	13 A
Fastening Type	Threaded
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015, MIL-5015
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	18 mm
Shell Size - Insert Width	4 mm
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating (AC)	900 VAC
Voltage Rating (DC)	1250 VDC

MS3100A18 Series

Part	Grade	Qualification	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Termination	Current Rating	Orientation	Insert Material	Mounting Type	Primary Material	Number of Positions	Fastening Type	Contact Finish - Mating	Color	Voltage Rating (DC)	Voltage Rating (AC)	Contact Material	Shell Finish	Applications	Shielding	Mounting Feature	Ingress Protection	Features	Backshell Material	Plating	Current Rating Options
Amphenol Aerospace Operations MS3100A18-10P	Military	MIL-5015 MIL-DTL-5015	125 °C	-55 °C	Aluminum Alloy	10 mm	18 mm	Male Pins Receptacle	Solder Cup	23 A	N (Normal)	Neoprene	Panel Mount	Metal	4	Threaded	Silver	Olive Drab	700 VDC	500 VAC	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Unshielded	Flange	Environment Resistant
Amphenol Aerospace Operations MS3100A18-1P		MIL-5015	125 °C	-55 °C	Aluminum Alloy	1 mm	18 mm	Male Pins Receptacle	Solder Cup		N (Normal)	Neoprene	Panel Mount	Metal	10	Threaded	Silver	Olive Drab			Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Unshielded	Flange		Backshell	Aluminum Alloy	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3100A18-9P		MIL-5015	125 °C	-55 °C	Aluminum Alloy	9 mm	18 mm	Male Pins Receptacle	Solder Cup		N (Normal)	Neoprene	Panel Mount	Metal	7	Threaded	Silver	Olive Drab	250 VDC	200 VAC	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Unshielded	Flange	Environment Resistant				13A 23A
Amphenol Aerospace Operations MS3100A18-17P
Amphenol Aerospace Operations MS3100A18-6P-RES
Amphenol Aerospace Operations MS3100A18-22P
Amphenol Aerospace Operations MS3100A18-13P
Amphenol Aerospace Operations MS3100A18-10S		MIL-5015	125 °C	-55 °C	Aluminum Alloy	10 mm	18 mm	Female Sockets Receptacle	Solder Cup	23 A	N (Normal)	Neoprene	Panel Mount	Metal	4	Threaded	Silver	Olive Drab	700 VDC	500 VAC	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Unshielded	Flange	Environment Resistant
Amphenol Aerospace Operations MS3100A18-11S	Military	MIL-5015 MIL-DTL-5015	125 °C	-55 °C	Aluminum Alloy	11 mm	18 mm	Female Sockets Receptacle	Solder Cup	23 A	N (Normal)	Neoprene	Panel Mount	Metal	5	Threaded	Silver	Olive Drab	700 VDC	500 VAC	Copper Alloy	Cadmium Olive Drab Chromate	Marine Military	Unshielded	Flange	Environment Resistant
Amphenol Aerospace Operations MS3100A18-5P-RES	Military	MIL-DTL-5015	125 °C	-55 °C	Aluminum Alloy	5 mm	18 mm	Male Pins Receptacle	Solder Cup		N (Normal)		Panel Mount	Metal	3	Threaded	Silver	Olive Drab				Cadmium Olive Drab Chromate		Unshielded	Flange
