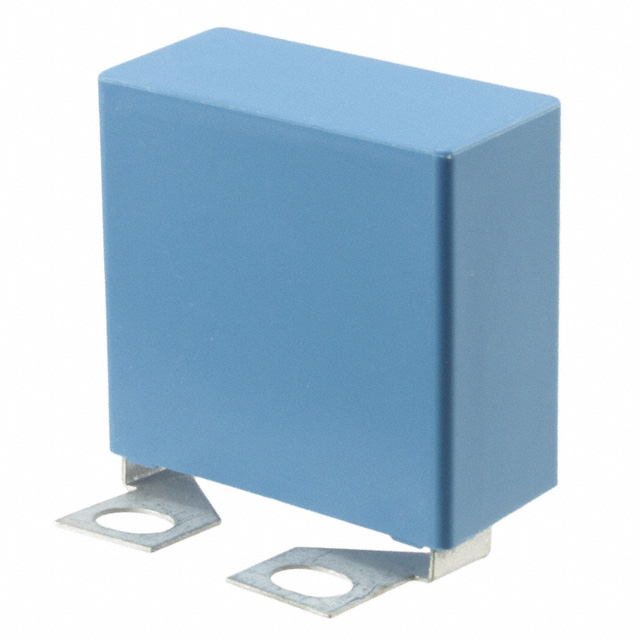

Specification	B32656S1334K565

Applications	Snubber
Capacitance	0.33 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	9 mOhm
Features	Low ESL
Height - Seated (Max)	1.555 in
Lead Spacing	0.866 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Ratings	AEC-Q200
Size / Dimension Length	1.654 in
Size / Dimension Width	0.787 in
Termination	Screw Terminals
Tolerance	10 %
Voltage Rating - AC	750 VAC
Voltage Rating - DC	1700 V
