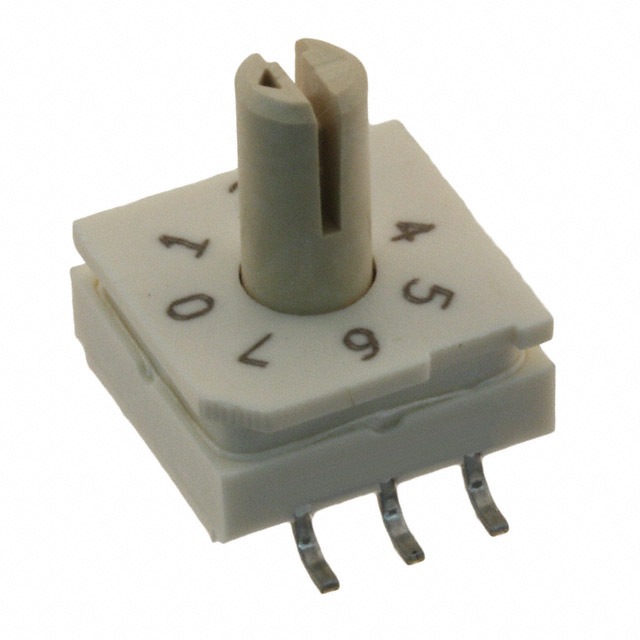

94HBB08WRT
ActiveGrayhill Inc.
SWITCH ROTARY DIP OCTAL 0.1A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 94HBB08WRT | 94HBB08 Series |
|---|---|---|
| Actuator Level | Raised | Raised |
| Actuator Type | Rotary with Shaft | Rotary with Shaft |
| Body Material | Plastic | Plastic |
| Circuit | Octal | Octal |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 100 mA | 100 mA |
| Features | Sealed | Sealed |
| Height Above Board | 0.225 in | 0.225 - 0.52 in |
| Height Above Board | 5.72 mm | 5.72 - 13.2 mm |
| Length | 0.39 " | 0.39 " |
| Length | 9.91 mm | 9.91 mm |
| Mechanical Life | 10000 Steps | 10000 Steps |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 8 | 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | Gull Wing | J Lead, Gull Wing |
| Voltage Rating | 50 V | 50 V |
| Washable | True | True |
94HBB08 Series
SWITCH ROTARY DIP OCTAL 0.1A 50V
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Current Rating (Amps) | Mounting Type | Actuator Type | Actuator Level | Length | Length | Features | Mechanical Life | Washable | Contact Finish | Height Above Board | Height Above Board | Pitch [x] | Pitch | Pitch [x] | Circuit | Body Material | Voltage Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 94HBB08JT | J Lead | 85 °C | -40 °C | 8 | 100 mA | Surface Mount | Rotary with Shaft | Raised | 0.39 " | 9.91 mm | Sealed | 10000 Steps | Gold | 0.52 in | 13.2 mm | 0.1 in | Full | 2.54 mm | Octal | Plastic | 50 V | Copper Alloy | |
Grayhill Inc. 94HBB08WT | Gull Wing | 85 °C | -40 °C | 8 | 100 mA | Surface Mount | Rotary with Shaft | Raised | 0.39 " | 9.91 mm | Sealed | 10000 Steps | Gold | 0.225 in | 5.72 mm | 0.1 in | Full | 2.54 mm | Octal | Plastic | 50 V | Copper Alloy | |
Grayhill Inc. 94HBB08WRT | Gull Wing | 85 °C | -40 °C | 8 | 100 mA | Surface Mount | Rotary with Shaft | Raised | 0.39 " | 9.91 mm | Sealed | 10000 Steps | Gold | 0.225 in | 5.72 mm | 0.1 in | Full | 2.54 mm | Octal | Plastic | 50 V | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 150 | $ 3.95 | |
Description
General part information
94HBB08 Series
Dip Switch Octal 8 Position Surface Mount Rotary with Shaft Actuator 100mA 50VDC
