Description
General part information
PI3CLS39306V8-7
The PI3CLS39306 is a dual bidirectional I2C-bus, SMBus and 13C bus voltage-level translator with an enable (EN) input. It is operational from 0.9V to 3.3V (VREF1) and 1.8V to 5V (VREF2).
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3CLS39306V8-7 |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Non-Inverted |
| Package Length | 0.091 in |

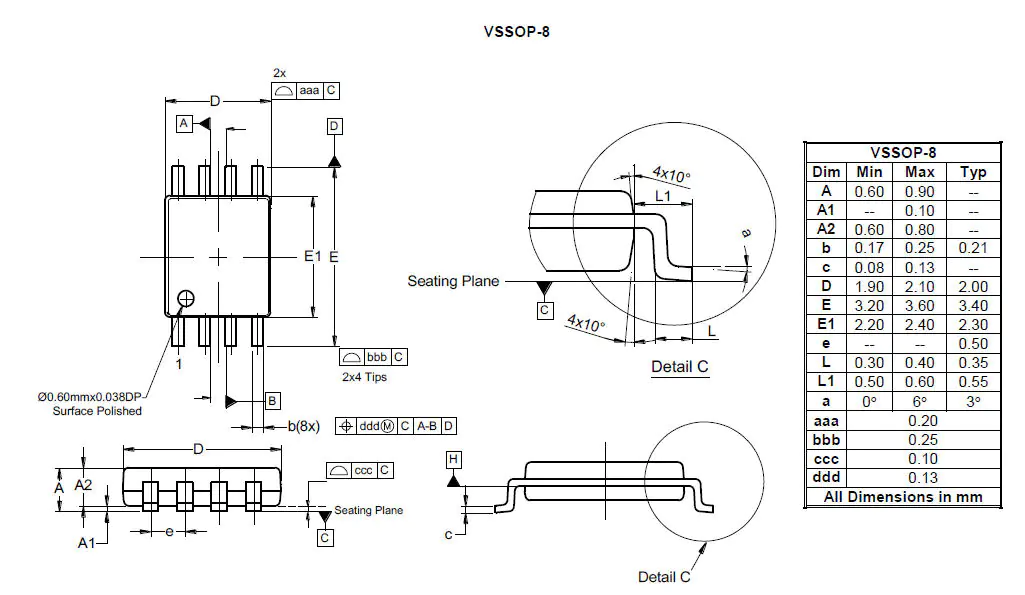

| Package Name | 8-VFSOP, 8-VSSOP |
| Package Width | 2.3 mm |
| Translator Type | Voltage Level |
| Voltage - VCCA (Max) | 3.3 V |
| Voltage - VCCA (Min) | 0.9 V |
| Voltage - VCCB (Max) | 5 V |
| Voltage - VCCB (Min) | 1.8 V |
