Description
General part information

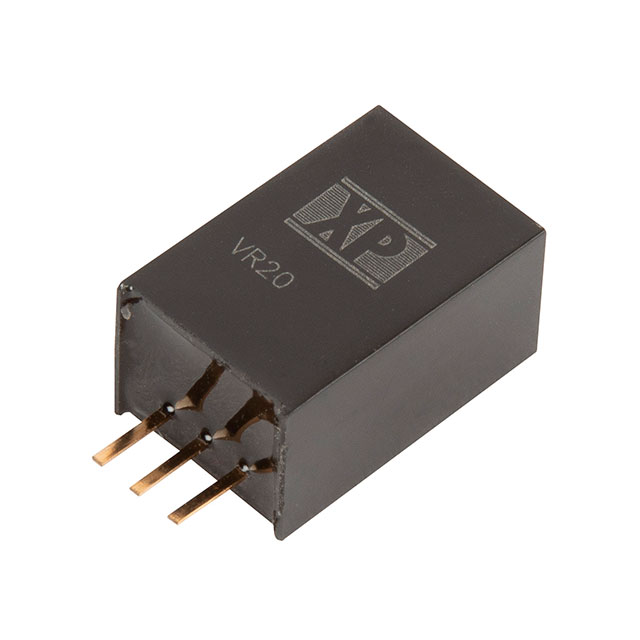

VR20S2V5
Non-Isolated PoL Module DC DC Converter 1 Output 2.5V 2A 4.5V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VR20S2V5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 2 A |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 3-SIP Module |
| Size / Dimension Height | 0.69 in |
| Size / Dimension Length | 0.45 in |
| Size / Dimension Width | 0.35 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Output 1 | 2.5 V |
