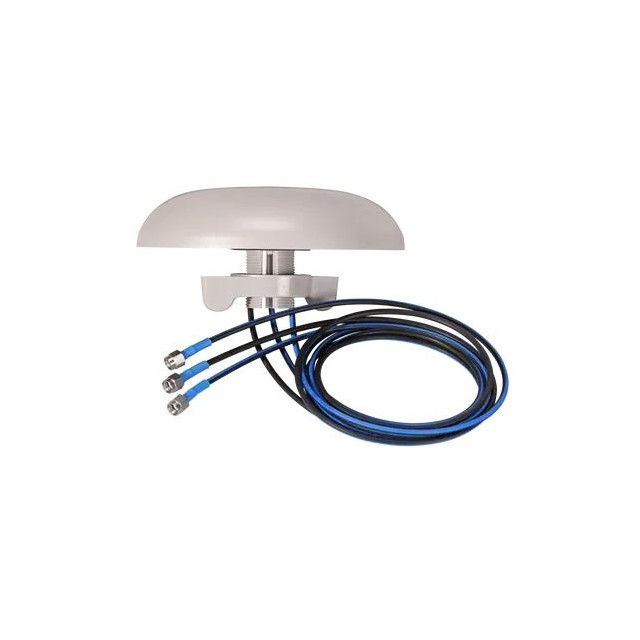

1399.59.0003
ActiveHuber+Suhner, Inc.
1399.59.0003
1399.59.0003
ActiveHuber+Suhner, Inc.
1399.59.0003
Description
General part information
1399.59.0003
1399.59.0003
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.59.0003 |
|---|---|
| Antenna Type | Dome |
| Applications | 802.11b/g/a/h/p/-c, GLONASS, GPS, LTE |
| Features | 1m, Cable |
| Frequency (Center/Band) | 2.4GHz, 5.437GHz, 2.595GHz, 3.6GHz |
| Frequency (Center/Band) - 1 | 2.4 GHz |
| Frequency (Center/Band) - 2 | 2.595 GHz |
| Frequency (Center/Band) - 3 | 3.6 GHz |
| Frequency (Center/Band) - 4 | 5.437 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.3 GHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 2.5 GHz |
| Frequency Range (Band 3) Maximum | 3.8 GHz |
| Frequency Range (Band 3) Minimum | 3.4 GHz |
| Frequency Range (Band 4) Maximum | 5.975 GHz |
| Frequency Range (Band 4) Minimum | 4.9 GHz |
| Gain | 1.5 dBi, 2 dBi, 4 dBi |
| Height (Max) | 1.307 in |
| Mounting Type | Panel Mount |
| Number of Bands | 4 |
| RF Family/Standard | WiFi, Cellular |
| Termination Count (SMA Male) | 3 |
| Termination Type | SMA Male |
| VSWR | 2, 1.5, 1.8, 1.7 |
