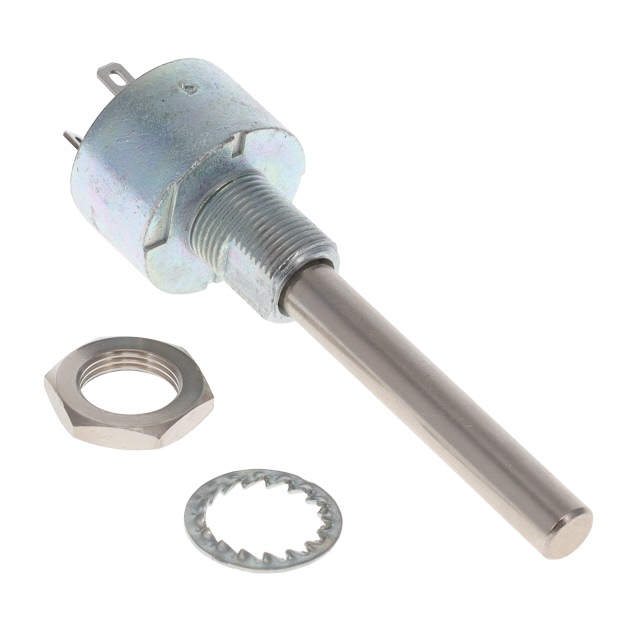

PE30L0FR223KAB
ActiveVishay Dale
POT 22K OHM 3W CERMET LINEAR
PE30L0FR223KAB
ActiveVishay Dale
POT 22K OHM 3W CERMET LINEAR
Description
General part information
PE30L0FR223KAB
22k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Cermet 3W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | PE30L0FR223KAB |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 1.969 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | M10 x 0.75 |
| Bushing Thread Diameter | 10 mm |
| Bushing Thread Pitch | 0.75 mm |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 3 W |
| Resistance | 22 kOhm |
| Resistive Material | Cermet |
| Rotation | 300 ° |
| Size - Body Diameter | 0.776 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/¯C |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
